1. Core Identity: Types, Standards & Equivalent Grades

1.1 Common Types of Steel Sections

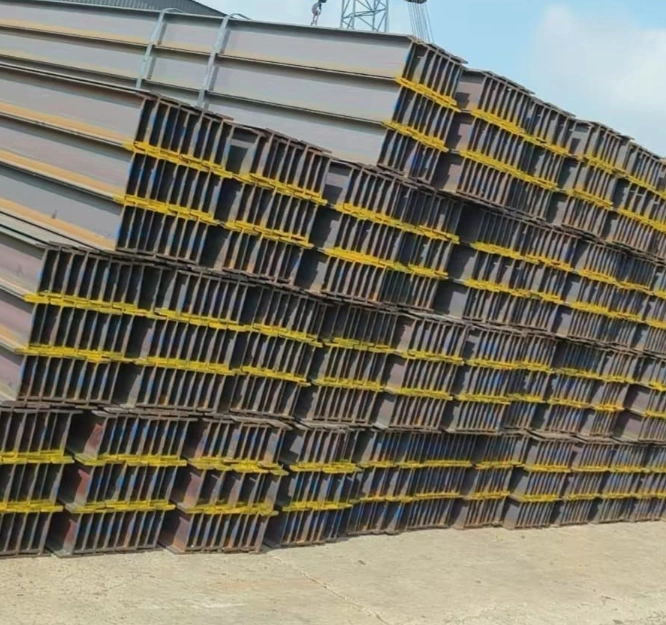

• I-Beams (Universal Beams, UB): Characterized by an “I” or “H” cross-section (often referred to as H-beams when the flanges are wider). Designed to resist bending and shear forces, ideal for main structural frames in buildings and bridges.
• Channels (C-Sections): U-shaped cross-section with two parallel flanges connected by a web. Used for purlins, lintels, and secondary structural supports.

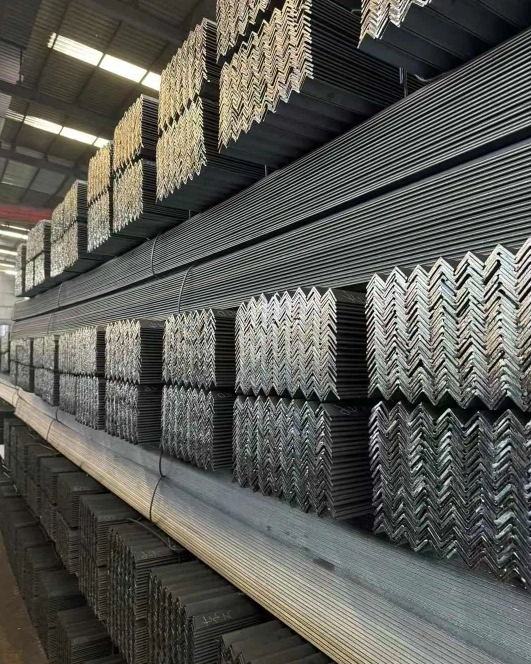

• Angles (L-Sections): Right-angled cross-section with two legs of equal or unequal length. Suitable for bracing, framing, and connecting structural components.
• Box Sections (Hollow Sections): Closed rectangular, square, or circular cross-sections. Offer high torsional stiffness and are used in columns, trusses, and offshore structures.
• Tees (T-Sections): T-shaped cross-section, formed by cutting an I-beam or H-beam longitudinally. Used for floor joists and secondary supports.

1.2 Key International Standards

• ASTM (USA): A6/A6M (Standard Specification for Rolled Structural Steel Bars, Plates, Shapes, and Sheet Piling);
• EN (Europe): EN 10025 (Hot-rolled products of structural steels); EN 10210 (Hot-finished structural hollow sections of non-alloy and fine-grain steels);
• BS (UK): BS 4-1 (Hot-rolled steel sections for structural use);
• GB (China): GB/T 706 (Hot-rolled I-beams, channels, and angles); GB/T 6728 (Cold-formed rectangular steel hollow sections);
• JIS (Japan): JIS G 3192 (Hot-rolled steel sections for general structure).

1.3 Equivalent Grades Cross-Reference

2. Chemical & Mechanical Properties: Engineered for Strength & Durability

2.1 Typical Chemical Composition (A36/S235JR/Q235B, mass fraction, %)

2.2 Mechanical Properties (Annealed/Hot-Rolled State)

2.3 Physical Properties

• Density: 7.85 g/cm³ (standard for carbon steel);
• Melting Point Range: 1450–1500°C;
• Thermal Conductivity: 45–50 W/m·K (20°C);
• Thermal Expansion Coefficient: 11.5–12.0×10⁻⁶/°C (20–100°C);
• Service Temperature Range: -20°C to 350°C (continuous service for carbon steel sections);
• Magnetic Permeability: Ferromagnetic (all carbon steel sections).

3. Product Forms & Dimensional Ranges

4. Production Process & Quality Control

4.1 Production Process

1. Raw Material Preparation: High-quality iron ore or steel scrap is selected, with strict control of impurity content (sulfur, phosphorus) to ensure material performance;
2. Smelting: Raw materials are melted in a Basic Oxygen Furnace (BOF) or Electric Arc Furnace (EAF), followed by ladle refining (LF) to adjust chemical composition and remove impurities;
3. Continuous Casting: Molten steel is cast into billets, blooms, or slabs via continuous casting, ensuring uniform grain structure and minimal segregation;
4. Hot Rolling: Billets/blooms are heated to 1150–1250°C and rolled through a series of stands to form the desired cross-sectional shape. Hot rolling enhances strength and ductility;
5. Cold Forming (for thin-walled sections): For lightweight sections (e.g., small hollow sections), cold rolling or bending is used to achieve precise dimensions, with intermediate annealing to maintain ductility;
6. Finishing: Sections are cut to length, straightened, and subjected to surface treatments (shot blasting, pickling) to remove oxide scale and improve surface quality;
7. Inspection & Certification: Final inspection includes dimensional checks, mechanical testing, and non-destructive testing (NDT) before certification.

4.2 Quality Control Measures

• Chemical Testing: Spectrometric analysis (ASTM E415/EN ISO 10703) to verify compliance with grade specifications;
• Mechanical Testing: Tensile, impact, and hardness tests (per batch) to ensure strength and toughness requirements are met;
• Dimensional Inspection: Laser or ultrasonic measurement to check cross-sectional dimensions, straightness, and length tolerance;
• Non-Destructive Testing (NDT): Ultrasonic Testing (UT) for internal flaws, Magnetic Particle Testing (MT) for surface defects;
• Certification: Material Test Report (MTR) 3.1 or 3.2 (per ASTM A479/EN 10204) for critical applications such as bridges and high-rise buildings.

5. Core Applications: Powering Global Construction & Engineering

5.1 Building Construction

• Residential Buildings: I-beams and channels for floor joists, angles for framing, and hollow sections for columns;
• Commercial/High-Rise Buildings: Large I-beams/H-beams for structural frames, hollow sections for columns (reducing weight while maintaining strength), and angles for bracing systems;
• Industrial Buildings: Heavy-duty I-beams and channels for factory frames, crane rails, and equipment supports.

5.2 Infrastructure

• Bridges: I-beams, H-beams, and box sections for bridge girders, decks, and piers (resisting dynamic loads from traffic and weather);
• Roads & Railways: Angles and channels for guardrails, sign supports, and railway track components;
• Water & Energy Infrastructure: Hollow sections for water treatment plant frames, and I-beams for wind turbine towers.

5.3 Manufacturing & Industrial Equipment

• Machinery Frames: Hollow sections and I-beams for industrial machinery (e.g., press machines, conveyor systems);
• Storage & Logistics: Angles and channels for warehouse racks, and I-beams for shipping container supports;
• Automotive & Aerospace: Precision cold-formed sections for vehicle frames and aircraft components (lightweight and high-strength).

5.4 Offshore & Marine Applications

• Hollow sections and heavy-duty I-beams for offshore oil platforms, ship hull frames, and port cranes (resisting saltwater corrosion and dynamic wave loads).

6. 2025 Pricing Analysis: Market Dynamics & Procurement Insights

6.1 Global Price Ranges (by Product Form & Grade)

6.2 Key Pricing Drivers

• Raw Material Costs: Iron ore (62% Fe) and scrap steel account for 60–70% of production costs. With iron ore at ~$120/ton (Q4 2025), a $10/ton increase raises steel section prices by $15–$25/ton. Scrap steel prices (US Midwest #1 HMS) at ~$450/ton also impact cold-formed section costs;
• Production Complexity: Cold-formed sections cost 25–35% more than hot-rolled sections due to additional processing steps (cold rolling, annealing). Hollow sections are 30–40% more expensive than open sections (I-beams, angles) due to the closed cross-section fabrication process;
• Grade & Certification: High-strength grades (A572 Gr. 50, S355JR) cost 15–20% more than standard grades (A36, S235JR). Third-party certification (MTR 3.2) adds 12–18% vs. mill certification (MTR 3.1);
• Market Demand: Global construction activity (especially in Asia and North America) drives demand. 2025 Q4 data shows a 10% increase in high-rise building projects in China and the US, supporting stable pricing for I-beams and hollow sections;
• Order Volume & Logistics: Bulk orders (≥100 tons) unlock 10–15% discounts. Small orders (<20 tons) incur 8–12% premiums. Regional logistics costs (e.g., shipping from China to Europe) add $150–$200/ton to export prices.

6.3 Procurement Optimization Strategies

• Bulk Purchasing: Partner with contractors or distributors for project-wide orders (e.g., new building construction) to secure volume discounts and stable lead times;
• Regional Sourcing: Chinese manufacturers (e.g., Baoshan Iron & Steel, Shougang Group) offer 25–35% cost savings vs. US/European suppliers for equivalent grades, especially for hot-rolled sections;
• Grade Right-Sizing: Use standard grades (A36, S235JR) for non-critical structures; reserve high-strength grades (A572 Gr. 50, S355JR) for load-bearing components to avoid over-specification;
• Process Selection: Opt for hot-rolled sections for general construction (lower cost); use cold-formed sections only when precision dimensions or lightweight are required;
• Long-Term Contracts: Annual supply agreements with manufacturers hedge against raw material price volatility, critical for multi-year infrastructure projects.

7. Supply Chain & Value-Added Services

7.1 Minimum Order Quantity (MOQ)

• Hot-rolled sections (I-beams, angles, channels): 20 tons (small orders); 50 tons (bulk discount);
• Hollow sections: 15 tons (standard sizes); 30 tons (custom dimensions);
• Cold-formed sections: 10 tons (standard); 20 tons (custom).

7.2 Delivery Lead Time

• Stock hot-rolled sections: 10–15 days (ex-works China);
• Custom hot-rolled sections: 25–35 days;
• Cold-formed sections: 30–45 days;
• Export orders: +7–15 days for certification and shipping.

7.3 Packaging & Logistics

• Packaging: Seaworthy export packaging—sections are bundled with steel straps, wrapped in moisture-proof film, and placed on wooden skids. Hollow sections have plastic caps to prevent corrosion;
• Global Supply Hubs: Core production bases in China (Jiangsu, Hebei), US (Indiana, Ohio), Germany, and Japan. Key loading ports: Shanghai, Tianjin, Houston, Hamburg.

7.4 Value-Added Services

• Precision Cutting: Plasma, flame, or laser cutting to custom lengths (tolerance ±1mm);
• Welding & Fabrication: On-site or factory welding of sections into pre-assembled modules (e.g., building frames);
• Surface Treatment: Galvanizing (hot-dip or electro-galvanizing) for corrosion resistance, shot blasting for coating preparation;
• Technical Consulting: Material selection, structural design support, and load-bearing capacity calculation;
• Third-Party Testing: SGS/BV/TÜV certification for international projects.

8. Conclusion
