1. Core Identity: Standards & Equivalent Grades

• Key Standards:
  • ASTM/ASME: B168 (sheets/plates), B166 (bars/rods), B167 (seamless pipes), B564 (forgings);
  • European: EN 10095 (2.4851), EN 10216-5 (pipes), DIN 17740;
  • ISO: ISO 6208 (N06601);
  • Japanese: JIS G4902 (NCF601), JIS G3464 (pipes).
• Equivalent Grades Cross-Reference:

  Designation System	Grade Identifier	Key Feature
  UNS	N06601	Global alloy designation
  EN/DIN	2.4851/NiCr23Fe	European harmonized grade
  ASTM	Inconel 601	Trade name for high-temperature service
  JIS	NCF601	Japanese equivalent for industrial furnaces
  French	NA49	National standard for aerospace/chemical use

2. Chemical Composition: The Science of High-Temperature Resistance

3. Mechanical & Physical Properties: Engineered for Extremes

3.1 Room-Temperature Mechanical Properties

3.2 High-Temperature Mechanical Properties

3.3 Physical Properties

• Density: 8.11 g/cm³;
• Melting Point Range: 1320–1370°C;
• Thermal Conductivity: 14.9 W/m·K (20°C); 25.6 W/m·K (600°C);
• Thermal Expansion Coefficient: 13.1×10⁻⁶/°C (20–500°C); 15.3×10⁻⁶/°C (500–1000°C);
• Electrical Conductivity: 9.0% IACS (20°C);
• Service Temperature Range: -270°C to 1150°C (continuous); 1200°C (short-term);
• Magnetic Permeability: ≤1.01 (non-magnetic at all temperatures).

4. Product Forms & Surface Treatments

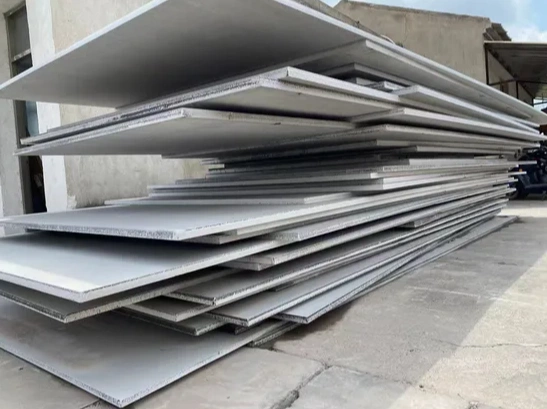

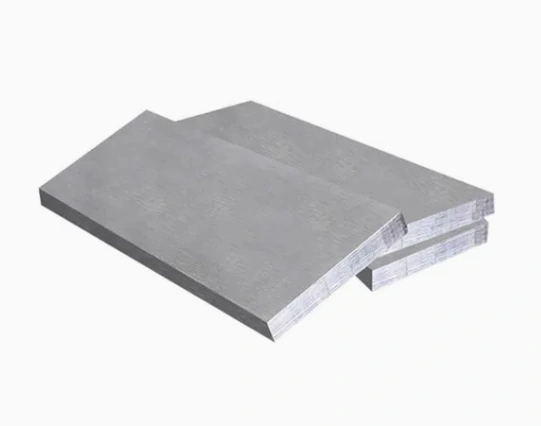

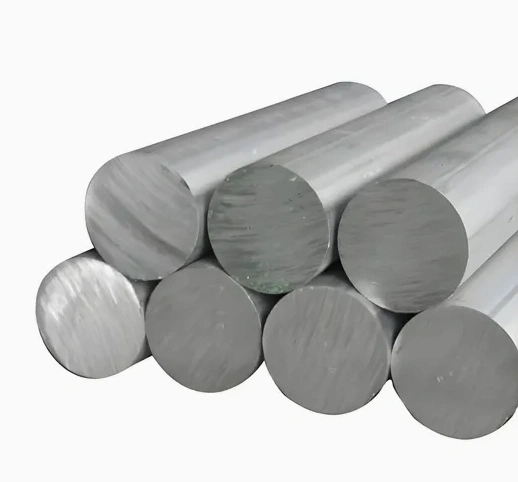

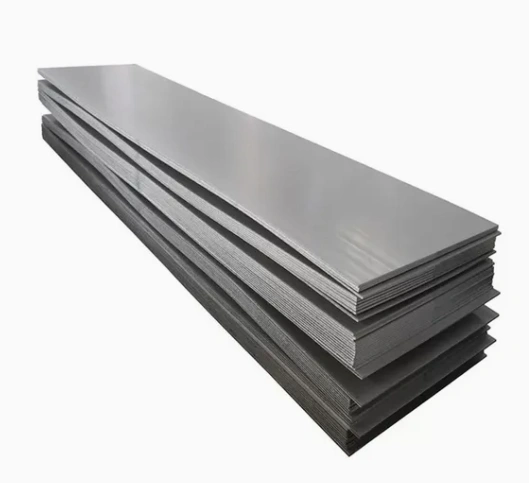

4.1 Core Product Forms & Dimensional Ranges

4.2 Surface Finishes & Heat Treatment

• Standard Heat Treatment: Annealing at 1050–1150°C (air/water cooling) – Refines grain structure, restores ductility, and optimizes oxidation resistance;
• Surface Finishes:
  • Annealed & Pickled: Acid-washed (nitric-hydrofluoric) to remove oxide scale (critical for welding and corrosion resistance);
  • Shot Blasted: Sa 2.5 standard (preparation for high-temperature coatings or paint);
  • Bright Annealed: Mirror-like finish for decorative or low-friction applications (e.g., aerospace trim).

5. Production Process & Quality Control

1. Raw Material Preparation: High-purity nickel, chromium, and iron alloys (certified for low impurities like sulfur and phosphorus);
2. Smelting: Vacuum Induction Melting (VIM) + Vacuum Arc Remelting (VAR) – Ensures chemical uniformity, removes gases (O₂, H₂), and eliminates inclusions;
3. Continuous Casting: Molten alloy cast into slabs/billets; homogenization annealing (1100°C for 8 hours) to eliminate segregation;
4. Hot Working: Heated to 1150–1200°C; hot-rolled or forged to target shape; controlled cooling to prevent grain coarsening;
5. Cold Working: For precision parts (e.g., thin-walled tubes); intermediate annealing to maintain ductility;
6. Final Annealing: 1050–1150°C (air cooling) – Locks in oxidation-resistant microstructure;
7. Quality Inspection (Mandatory):

• Chemical Testing: Spectrometric analysis (ASTM E1086) to verify alloy composition;
• Mechanical Testing: Tensile, impact, and hardness tests (per batch); creep rupture testing (for critical high-temperature applications);
• Non-Destructive Testing (NDT):
  • Ultrasonic Testing (UT): 100% inspection for internal flaws (ASTM A609);
  • Liquid Penetrant Testing (PT): Surface flaw detection (ASTM E165);
  • Radiographic Testing (RT): Weld joint inspection (ASTM E94);
• Material Test Report (MTR): ASTM A479 3.1 or 3.2 certification (mandatory for pressure vessels and aerospace use).

6. Core Applications: Conquering Extreme Heat & Corrosion

6.1 Aerospace & Defense

• Key Applications: Jet engine exhaust systems, afterburners, turbine combustion chambers, rocket motor casings;
• Rationale: Withstands short-term exposure to 1200°C+; resists oxidation from hot exhaust gases; maintains structural integrity under dynamic loads.

6.2 Chemical & Petrochemical Industry

• Key Applications: Catalytic cracker tubes, ethylene furnace radiant tubes, hydrogenation reactors, sulfuric acid plant heat exchangers;
• Rationale: Resists sulfidation (H₂S), carburization, and molten salt corrosion; performs reliably in cyclic high-temperature processes (600–1000°C).

6.3 Heat Treatment & Industrial Furnaces

• Key Applications: Furnace liners, radiant tubes, conveyor belts, annealing baskets;
• Case Study: A metal heat treatment facility replaced 310S stainless steel liners with Inconel 601, extending service life from 18 months to 5 years—reducing maintenance costs by 65%.

6.4 Environmental & Energy Industry

• Key Applications: Waste incinerator components, flue gas desulfurization (FGD) systems, nuclear power plant auxiliary equipment;
• Rationale: Resists corrosion from acidic flue gases and molten ash; compatible with nuclear coolants (water, helium).

6.5 Other Critical Sectors

• Marine: Offshore oil rig exhaust systems (resists seawater corrosion + high temperatures);
• Medical: High-temperature sterilization equipment (resists steam oxidation and chemical disinfectants).

7. 2025 Pricing Analysis: Market Dynamics & Procurement Insights

7.1 Global Price Ranges (by Product Form)

7.2 Key Pricing Drivers

• Nickel Price Volatility: Nickel accounts for 50–60% of production costs. With LME nickel at ~$18,500/ton (Q4 2025), a $1,000/ton nickel increase raises 601 plate prices by $6–$8/kg.
• Production Complexity: VIM/VAR melting adds 20–25% to costs vs. standard EAF melting; aerospace-grade forgings cost 40–60% more than industrial-grade products.
• Certifications: Aerospace (ASME Section IX) or nuclear-grade certifications add 25–30% vs. industrial-grade; 3.2 MTR costs 12–15% more than 3.1 MTR.
• Order Volume: Bulk orders (≥20 tons) unlock 12–18% discounts; small orders (<5 tons) incur 10–15% premiums.
• Product Form: Seamless pipes cost 35–45% more than plates; thin sheets (<2mm) cost 30–35% more than thick plates (>10mm).

7.3 Procurement Optimization Strategies

• Bulk Purchasing: Partner with manufacturers for project-wide orders (e.g., furnace retrofits) to secure volume discounts and stable pricing.
• Regional Sourcing: Chinese manufacturers offer 30–35% cost savings vs. Western suppliers (US/Europe) with equivalent ASTM/EN compliance.
• Standard Specifications: Opt for common sizes (10mm plates, 25mm bars) to avoid custom production premiums (18–22%).
• Grade Right-Sizing: Use Inconel 601 for 800–1150°C service; avoid over-specifying Inconel 625 (30–40% more expensive) unless extreme corrosion is a primary concern.
• Long-Term Contracts: Annual supply agreements hedge against nickel price fluctuations and ensure priority delivery for critical projects.

8. Supply Chain & Value-Added Services

• Minimum Order Quantity (MOQ):
  • Plates/sheets: 5 tons (standard sizes); 10 tons (custom thicknesses);
  • Bars/pipes: 10 tons (standard); 20 tons (custom dimensions);
  • Forgings: 1 ton (small parts); 5 tons (large components).
• Delivery Lead Time:
  • Stock products (10mm plates, 25mm bars): 3–5 weeks (ex-works China);
  • Custom products: 7–9 weeks;
  • Aerospace/nuclear grades: 12–14 weeks (additional certification time).
• Packaging: Seaworthy export packaging – plates/sheets (moisture-proof film + wooden crates); pipes/bars (anti-rust oil + plastic caps + steel bundles); forgings (custom crates with anti-vibration padding);
• Value-Added Services:
  • Precision cutting (laser, waterjet) to custom dimensions (tolerance ±0.1mm);
  • Welding support: Technical guidelines + matching consumables (ERNiCr-3);
  • Heat treatment optimization: Custom annealing for specific temperature requirements;
  • Third-party testing (SGS/BV/TÜV) for aerospace/nuclear applications;
  • Technical consulting: Material selection, creep life calculation, and high-temperature design support.
• Global Supply Hubs: Core production bases in China (Jiangsu, Shanghai), US (Ohio, Pennsylvania), Germany, and Japan; key loading ports: Shanghai, Tianjin, Houston, Hamburg.

9. Conclusion
