1. Core Identity: Standards & Equivalent Grades

• Key Standards:
  • ASTM/ASME: B409 (sheets/plates), B408 (bars), B163 (seamless pipes), B564 (forgings);
  • European: EN 10095 (1.4958), EN 10216-5 (pipes);
  • ISO: ISO 6208 (N08810);
  • Japanese: JIS G4902 (NW4400H).
• Equivalent Grades Cross-Reference:

  Designation System	Grade Identifier	Key Distinction vs. Incoloy 800
  UNS	N08810	Higher carbon (0.05–0.10%) for creep resistance
  EN	1.4958	European harmonized grade for high-temperature service
  ASTM	Incoloy 800H	Carbon-controlled variant of Incoloy 800 (N08800)
  JIS	NW4400H	Japanese equivalent for industrial furnaces

2. Chemical Composition: The Foundation of High-Temperature Performance

3. Mechanical & Physical Properties: Tailored for Extreme Conditions

3.1 Room-Temperature Mechanical Properties

3.2 High-Temperature Mechanical Properties

3.3 Physical Properties

• Density: 7.95 g/cm³;
• Melting Point Range: 1350–1400°C;
• Thermal Conductivity: 15.1 W/m·K (20°C); 25.1 W/m·K (600°C);
• Thermal Expansion Coefficient: 13.5×10⁻⁶/°C (20–500°C); 15.8×10⁻⁶/°C (500–900°C);
• Electrical Conductivity: 9.5% IACS (20°C);
• Service Temperature Range: -270°C to 900°C (continuous); 1000°C (short-term);
• Magnetic Permeability: ≤1.01 (non-magnetic at all temperatures).

4. Product Forms & Surface Treatments

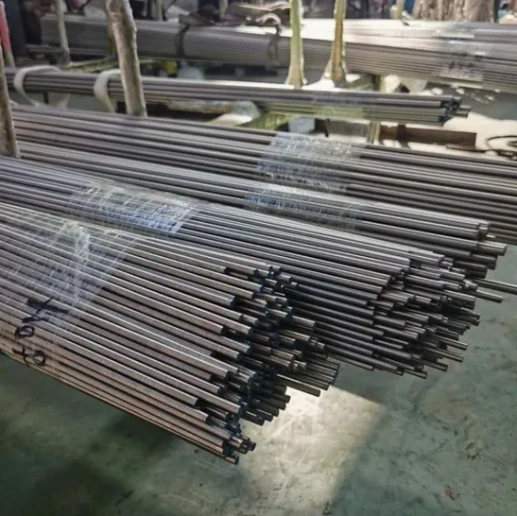

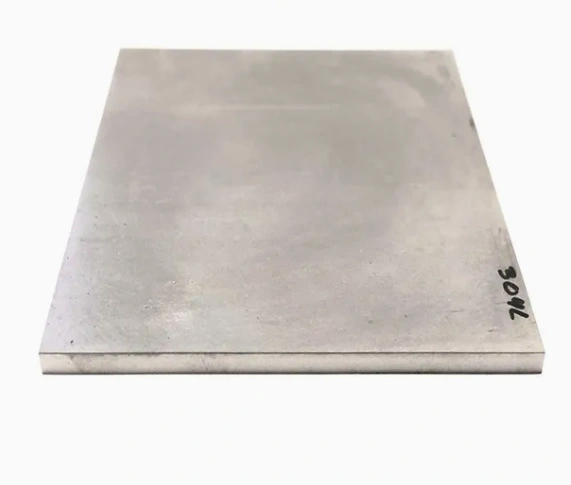

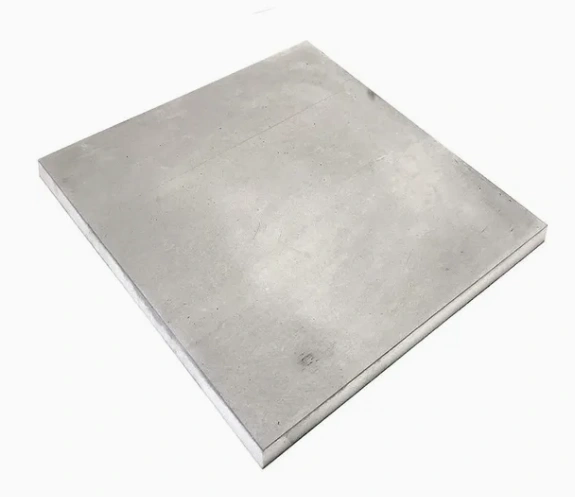

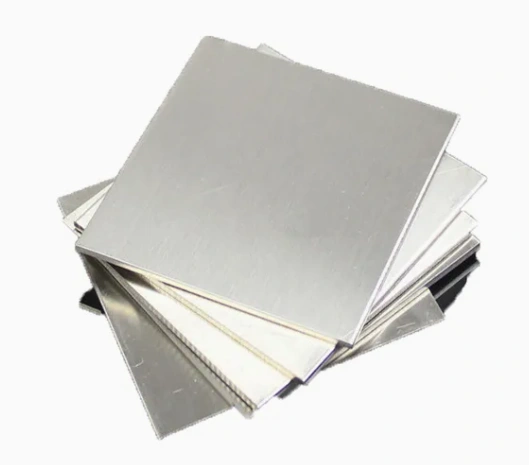

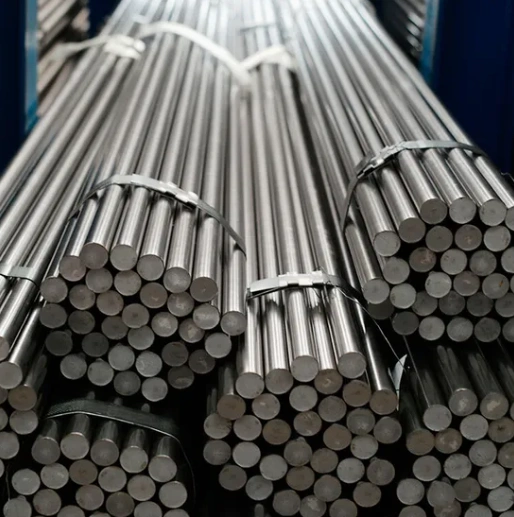

4.1 Core Product Forms & Dimensional Ranges

4.2 Surface Finishes & Heat Treatment

• Standard Heat Treatment: Annealing at 980–1040°C (air/water cooling) – Refines grain structure and restores ductility after fabrication;
• Surface Finishes:
  • Annealed & Pickled: Acid-washed to remove oxide scale (for welding and corrosion resistance);
  • Shot Blasted: Sa 2.5 standard (preparation for high-temperature coatings);
  • Polished: For sanitary or low-friction applications (e.g., food processing equipment).

5. Production Process & Quality Control

1. Raw Material Preparation: High-purity nickel, chromium, and iron alloys (certified for low impurities);
2. Smelting: Electric Arc Furnace (EAF) + Vacuum Induction Melting (VIM) or Vacuum Arc Remelting (VAR) – Ensures chemical uniformity and removes gases (O₂, H₂);
3. Continuous Casting: Molten steel cast into slabs/billets; homogenization annealing (1100°C for 6 hours) to eliminate segregation;
4. Hot Working: Heated to 1150–1200°C; hot-rolled or forged to target shape; controlled cooling to prevent grain coarsening;
5. Cold Working: For precision parts (e.g., thin-walled tubes); intermediate annealing to maintain ductility;
6. Final Annealing: 980–1040°C (air cooling) – Optimizes creep resistance;
7. Quality Inspection (Mandatory):

• Chemical Testing: Spectrometric analysis (ASTM E1086) to verify alloy composition;
• Mechanical Testing: Tensile, impact, and hardness tests (per batch); creep rupture testing (for critical high-temperature applications);
• Non-Destructive Testing (NDT):
  • Ultrasonic Testing (UT): 100% inspection for internal flaws (ASTM A609);
  • Liquid Penetrant Testing (PT): Surface flaw detection (ASTM E165);
  • Radiographic Testing (RT): Weld joint inspection (ASTM E94);
• Material Test Report (MTR): ASTM A479 3.1 or 3.2 certification (mandatory for pressure vessels).

6. Core Applications: Conquering High-Temperature Challenges

6.1 Petrochemical & Chemical Industry

• Key Applications: Catalytic reformer tubes, ethylene crackers, hydrogenation reactors, sulfuric acid plant heat exchangers;
• Rationale: Resists sulfidation (H₂S), carburization, and molten salt corrosion; maintains structural integrity under cyclic high temperatures (600–900°C).

6.2 Nuclear Power Industry

• Key Applications: Steam generator tubes, nuclear reactor auxiliary systems, coolant pipes;
• Rationale: Non-magnetic, radiation-resistant, and compatible with reactor coolants (water, helium); meets ASME Section III standards for nuclear safety.

6.3 Heat Treatment & Industrial Furnaces

• Key Applications: Furnace liners, radiant tubes, conveyor belts for high-temperature annealing (800–900°C);
• Case Study: A steel mill using 800H radiant tubes reported a 3x longer service life (6 years vs. 2 years for 310S stainless steel) due to superior creep resistance.

6.4 Aerospace & Defense

• Key Applications: Jet engine exhaust components, rocket motor casings, high-temperature structural parts;
• Rationale: Withstands short-term exposure to 1000°C+ and retains strength under dynamic loads.

6.5 Other Industries

• Food Processing: High-temperature sterilization equipment (resists food acids and steam);
• Marine: Offshore oil rig heat exchangers (resists seawater corrosion and high-pressure steam).

7. 2025 Pricing Analysis: Market Dynamics & Procurement Insights

7.1 Global Price Ranges (by Product Form)

7.2 Key Pricing Drivers

• Nickel Price Volatility: Nickel accounts for 40–50% of production costs. With LME nickel at ~$18,500/ton (Q4 2025), a $1,000/ton nickel increase raises 800H plate prices by $4–$6/kg.
• Production Complexity: VAR/VIM melting adds 15–20% to costs vs. standard EAF melting; custom forgings cost 30–50% more than standard products.
• Certifications: Nuclear-grade (ASME Section III) or aerospace certifications add 20–25% vs. industrial-grade; 3.2 MTR costs 10–15% more than 3.1 MTR.
• Order Volume: Bulk orders (≥20 tons) unlock 10–15% discounts; small orders (<5 tons) incur 8–12% premiums.
• Product Form: Seamless pipes cost 30–40% more than plates; thin sheets (<2mm) cost 25–30% more than thick plates (>10mm).

7.3 Procurement Optimization Strategies

• Bulk Purchasing: Partner with manufacturers for project-wide orders (e.g., nuclear power plants) to lock in pricing and reduce unit costs.
• Regional Sourcing: Chinese manufacturers offer 25–30% cost savings vs. Western suppliers (US/Europe) with equivalent quality (ASTM compliance).
• Standard Specifications: Opt for common sizes (10mm plates, 25mm bars) to avoid custom production premiums (15–20%).
• Grade Right-Sizing: Use 800H for 600–900°C service; avoid over-specifying 800HT (10–15% more expensive) unless ≥950°C service is required.
• Long-Term Contracts: Annual supply agreements hedge against nickel price fluctuations and ensure stable lead times.

8. Supply Chain & Value-Added Services

• Minimum Order Quantity (MOQ):
  • Plates/sheets: 5 tons (standard sizes); 10 tons (custom thicknesses);
  • Bars/pipes: 10 tons (standard); 20 tons (custom dimensions);
  • Forgings: 1 ton (small parts); 5 tons (large components).
• Delivery Lead Time:
  • Stock products (10mm plates, 25mm bars): 2–4 weeks (ex-works China);
  • Custom products: 6–8 weeks;
  • Nuclear/aerospace grades: 10–12 weeks (additional certification time).
• Packaging: Seaworthy export packaging – plates/sheets (moisture-proof film + wooden crates); pipes/bars (anti-rust oil + plastic caps + steel bundles);
• Value-Added Services:
  • Precision cutting (laser, waterjet) to custom dimensions (tolerance ±0.1mm);
  • Welding support: Technical guidelines + matching consumables (ERNiFeCr-2);
  • Heat treatment optimization: Custom annealing for specific creep requirements;
  • Third-party testing (SGS/BV/TÜV) for nuclear/aerospace applications;
  • Technical consulting: Material selection, creep life calculation, and high-temperature design support.
• Global Supply Hubs: Core production bases in China (Jiangsu, Shanghai), US (Pennsylvania, Ohio), Germany, and Japan; key loading ports: Shanghai, Tianjin, Houston, Hamburg.
