1. Core Definition & Standard Compliance

1.1 Fundamental Overview

DX53D+Z is a low-carbon hot-dip galvanized steel produced by immersing a precision-refined cold-rolled substrate in a molten zinc bath (445–465℃), forming a metallurgically bonded zinc-iron alloy coating. Its design prioritizes deep drawability—enabled by ultra-low carbon content and strict impurity control—while retaining the corrosion protection of hot-dip galvanizing. Key naming and classification details:

• Grade Nomenclature (EN 10346):
  • “D”: Indicates hot-dip galvanized (Diplomatic) process;
  • “X53”: Designates forming capability (X = cold-forming, 53 = deep-drawable—suitable for complex shapes like deep cups or curved panels);
  • “D”: Denotes commercial quality grade (optimized for mass production);
  • “+Z”: Signifies zinc coating (Zinc); suffixes like “Z150” or “Z275” indicate zinc coating weight (g/m² per side).
• Key Aliases: Deep-Draw Galvanized Steel DX53D, HDG Steel DX53D+Z, Zinc-Coated Deep-Draw Steel.
• Equivalent Grades:
  • European: EN 10346 DX53D+Z, DIN 17165 DC03+Z;
  • American: ASTM A653 CS Type C (deep-draw hot-dip galvanized);
  • Chinese: GB/T 2518 SGCD2 (equivalent deep-draw performance);
  • Japanese: JIS G 3302 SGCD2.

1.2 Core Standards

• Primary Standards: EN 10346 (European core standard for coated steel), EN 10142 (zinc coating requirements), ASTM A653 (American standard), GB/T 2518 (Chinese standard), JIS G 3302 (Japanese standard);
• Quality Certifications: ISO 9001, ISO 14001, CE (for European market), and third-party certifications (SGS, BV, TÜV) for export;
• Critical Requirements: Zinc coating weight ranges from Z100 (100 g/m² per side) to Z275 (275 g/m² per side); minimum elongation ≥34% (for deep drawing); coating adhesion (no peeling during 180° bend + deep draw test); corrosion resistance (≥500 hours salt spray test for Z275).

2. Chemical Composition

DX53D+Z’s deep-drawable performance stems from its ultra-low-carbon, low-impurity substrate—optimized to minimize brittleness and maximize plastic deformation. Chemical composition (mass fraction, %; per EN 10346):

Key Alloy Advantage

The ultra-low carbon (<0.08%) and low impurity (P/S ≤0.035%) formulation enables DX53D+Z to undergo extreme plastic deformation—such as deep drawing (depth-to-diameter ratio >1.5) and complex stamping—without cracking or coating peeling. This makes it the premier choice for components requiring both corrosion resistance and intricate shapes.

3. Mechanical & Coating Properties

DX53D+Z’s performance is defined by its industry-leading formability, balanced strength, and robust zinc coating protection. Typical values for 0.15–3.0mm thick sheets (EN 10346 compliant):

Performance Note

• Substrate Thickness Impact: Thin sheets (<0.5mm) excel in ultra-deep drawing (e.g., electronic components); thicker sheets (1.0–3.0mm) retain formability for automotive body parts and appliance shells.
• Formability Advantage: DX53D+Z’s elongation (≥34%) is 20% higher than DX51D+Z, making it suitable for shapes that standard galvanized steel cannot achieve without cracking.

4. Product Forms, Dimensional Range & Surface Quality

4.1 Core Product Forms

DX53D+Z is supplied in configurations tailored for deep-draw and precision stamping applications:

• Hot-Dip Galvanized Coils: Inner diameter (ID) 508mm/20″, outer diameter (OD) ≤2100mm; length up to 300m (ideal for continuous stamping lines);
• Hot-Dip Galvanized Sheets: Standard sizes (1220×2440mm, 1000×2000mm); custom cut-to-length for precision projects;
• Deep-Draw Blanks: Pre-cut shapes for immediate use in deep-drawing processes (reduces waste);
• Profiled Sheets: Curved or stamped panels for automotive and architectural applications;
• Slit Coils: Custom width slitting (50–1500mm) for specialized stamping lines.

4.2 Dimensional Range

• Thickness: Standard 0.15–3.0mm (optimal for deep drawing); common gauges: 0.3mm, 0.5mm, 0.8mm, 1.0mm, 1.2mm; customized up to 6.0mm for heavy-duty stamped parts;
• Width: Standard 1000mm, 1250mm, 1500mm; customized 50–2000mm;
• Length: Sheets 1000–6000mm; coils up to 300m;
• Dimensional Tolerance: Thickness ±0.015mm (precision grade) to ±0.04mm (standard grade); width ±0.8mm (standard); length ±1.5mm (standard)—critical for precision stamping.

4.3 Surface Quality & Coating Types

DX53D+Z’s surface quality is optimized for deep drawing and subsequent processing (painting, printing):

Surface Defect Control

• Critical Defects Eliminated: Zinc slag, uneven coating, and scratches—100% visual + automated optical inspection ensures surface smoothness, preventing tool damage during deep drawing.

5. Production Process & Quality Control

DX53D+Z’s deep-draw performance requires precision manufacturing and strict process control:

1. Substrate Preparation: Low-carbon steel coils (e.g., DC03) with ultra-low impurities are selected; chemical composition verified to meet EN 10346.
2. Pickling: Substrate immersed in hydrochloric acid (18–22% concentration) at 60–80℃ to remove oxide scale; thorough rinsing ensures clean surface for zinc adhesion.
3. Annealing: Critical step for deep drawability—substrate heated to 750–850℃ in a reducing atmosphere (H₂/N₂) to refine grain structure (average grain size 15–25μm) and maximize ductility.
4. Fluxing: Zinc ammonium chloride solution treatment to prevent re-oxidation before galvanizing.
5. Hot-Dip Galvanizing: Substrate immersed in molten zinc bath (445–465℃) for 3–8 seconds; controlled withdrawal speed ensures uniform coating thickness (avoids unevenness that impairs forming).
6. Cooling & Skin Pass Rolling: Air/water cooling + light skin pass (0.3–0.5% elongation) to improve flatness and surface uniformity.
7. Post-Treatment: Optional passivation or oil coating for protection and lubrication.
8. Quality Inspection:
   • Chemical Testing: Spectrometric analysis of substrate and zinc bath composition;
   • Mechanical Testing: Tensile, deep draw (Erichsen test ≥10mm), and coating adhesion tests;
   • Coating Testing: Magnetic thickness gauge (coating weight verification) + salt spray testing;
   • Surface & Dimensional Testing: Laser measurement for thickness/width/flatness + optical scanning for defects.

6. Core Applications

DX53D+Z’s unrivaled combination of deep drawability and corrosion resistance makes it indispensable for industries requiring complex, weather-resistant components:

6.1 Automotive Industry

• Deep-drawn body parts (door panels, fenders, hoods), fuel tanks, and interior stamped components;
• Rationale: Ultra-low yield strength enables complex shaping; zinc coating resists road salts and humidity.

6.2 Home Appliances

• Deep-drawn washing machine inner tubs, refrigerator door panels, air conditioner casings, and microwave oven housings;
• Rationale: Superior formability for curved/concave shapes; smooth surface for painting/printing.

6.3 Precision Stamping & Electronics

• Electronic device casings (smartphone backplates), electrical junction boxes, and precision metal brackets;
• Rationale: Precision thickness tolerance and ductility for micro-stamping.

6.4 Architectural & Construction

• Curved roofing panels, decorative stamped facades, and custom-shaped building cladding;
• Rationale: Deep-draw capability for architectural curves; corrosion resistance for outdoor use.

6.5 Agricultural & Industrial Equipment

• Stamped tractor body parts, grain bin components, and industrial containers;
• Rationale: Resistance to agricultural chemicals and outdoor corrosion; formability for complex equipment shapes.

7. Comparison with Similar Materials

7.1 DX53D+Z vs. DX51D+Z (Moderate Forming)

7.2 DX53D+Z vs. Electrogalvanized Steel (DX53D+ZE)

• DX53D+Z (Hot-Dip): Thicker coating (14–49μm); better adhesion for deep drawing; lower cost for thick coatings;
• DX53D+ZE (Electrogalvanized): Thinner coating (5–15μm); smoother surface; higher cost; suitable for ultra-precision electronics.

7.3 DX53D+Z vs. Stainless Steel (304)

• DX53D+Z: 50–70% lower cost; superior formability; requires zinc coating for corrosion resistance;
• 304 Stainless Steel: Superior corrosion resistance (no coating); higher cost; poorer formability for deep drawing.

8. Cost & Pricing Considerations (2025 Q4 Data)

DX53D+Z’s premium formability and stricter production controls result in a modest premium over standard DX51D+Z:

8.1 Key Pricing Drivers

• Zinc Price Fluctuation: 20–30% of total cost (linked to LME zinc prices: 2025 Q4 ~$2,800/ton);
• Coating Weight: Z275 costs 20–30% more than Z150; Z100 is 10–15% cheaper;
• Surface Finish: Zero spangle costs 5–10% more than small spangle;
• Order Volume: Bulk orders (≥50 tons) unlock 10–15% discounts vs. small orders (<5 tons);
• Formability Grade: DX53D+Z costs 5–8% more than DX51D+Z due to stricter annealing and impurity control.

8.2 Cost Optimization Strategies

• Coating Weight Matching: Choose Z150 for most applications (balance of cost and protection); avoid over-specifying Z275;
• Bulk Purchasing: Partner with manufacturers for project-wide orders to reduce unit costs;
• Standard Sizes: Opt for common dimensions (1220×2440mm) to avoid custom cutting premiums (10–15%);
• Domestic Sourcing: Chinese-manufactured DX53D+Z offers 20–30% cost savings vs. Western suppliers.

9. Supply Chain & Value-Added Services

• Minimum Order Quantity (MOQ): 1 ton (standard sizes, Z150); 5 tons (custom coating/surface finish);
• Delivery Lead Time: 7–14 days (stock products); 20–35 days (custom orders);

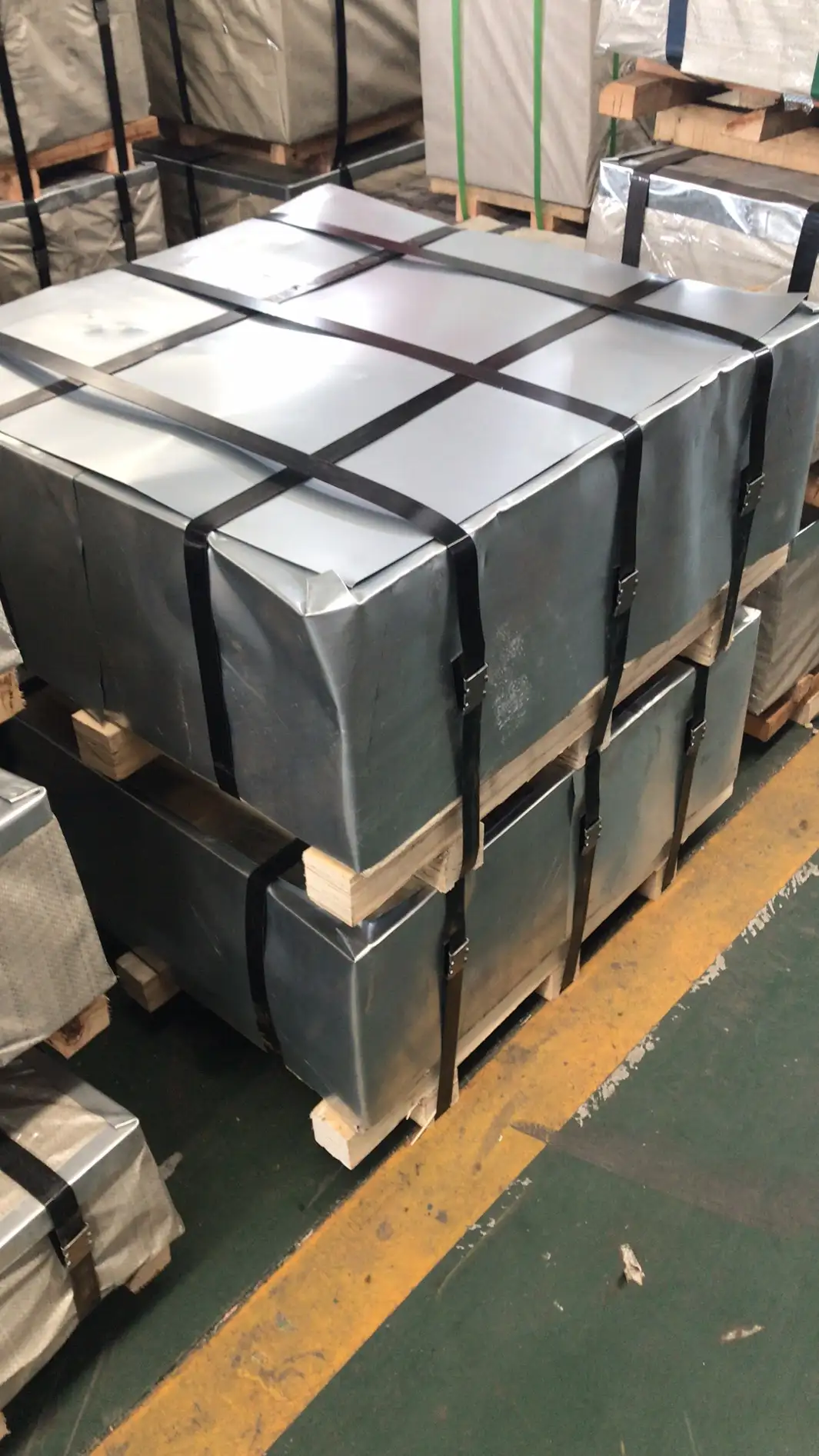

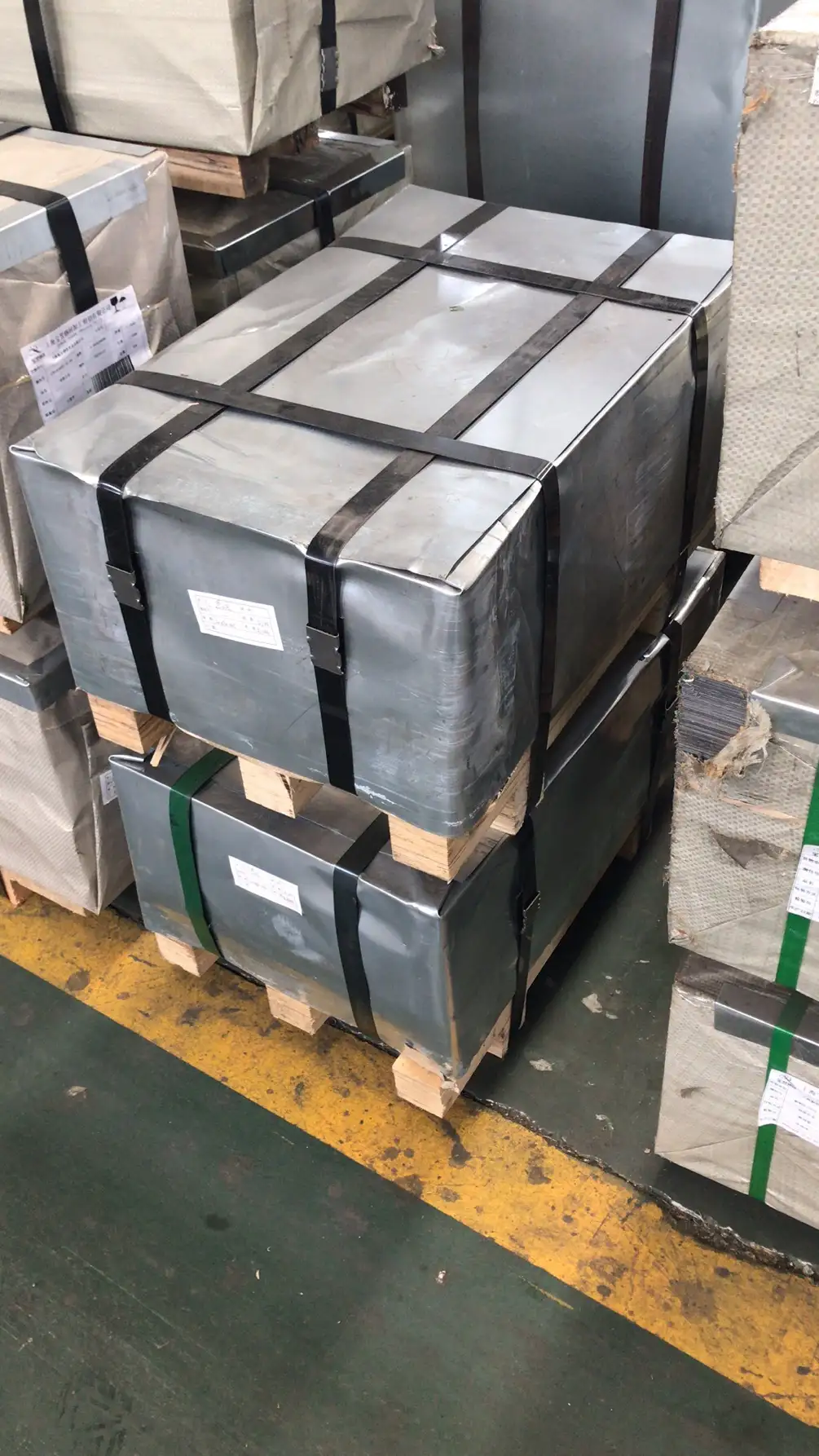

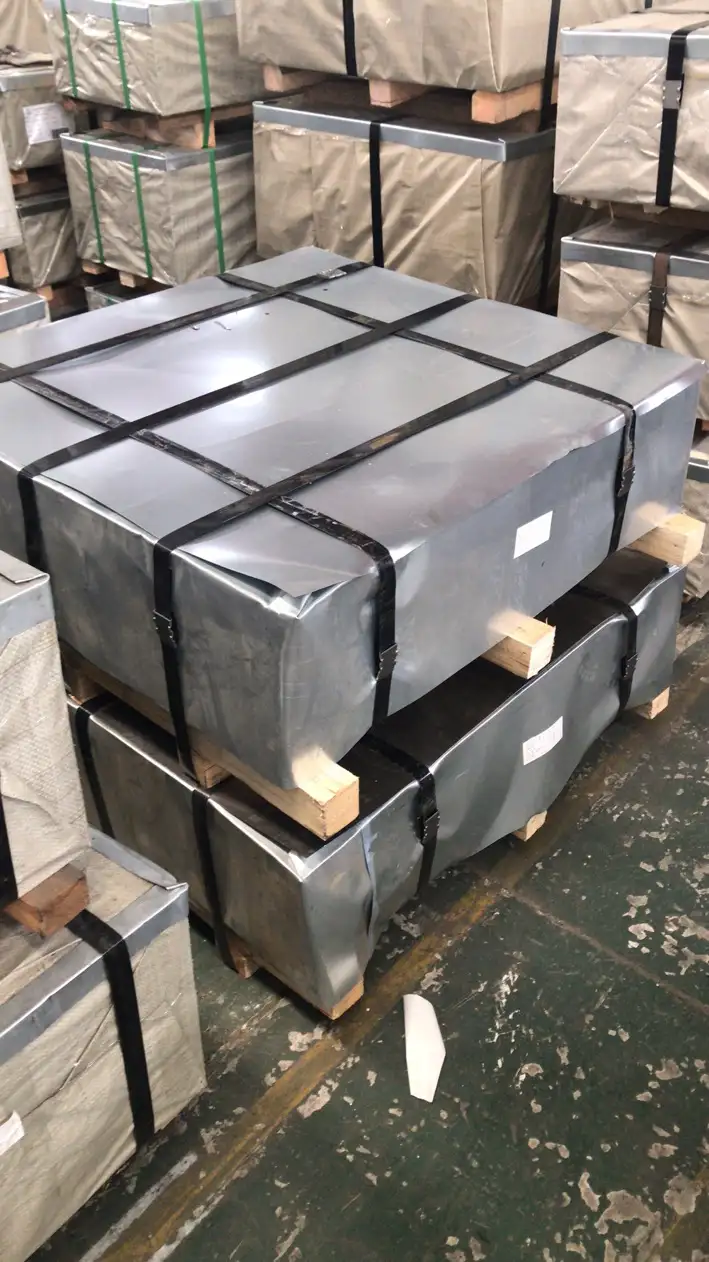

• Packaging: Seaworthy export packaging (moisture-proof plastic film + kraft paper + steel strips + wooden pallets) to prevent scratches and white rust;
• Value-Added Services:
  • Precision Processing: Slitting, cut-to-length, deep-draw blanking, and bending;
  • Surface Customization: Zero spangle, passivation, and lubricating oil coating;
  • Technical Support: Forming process optimization (e.g., deep draw tooling recommendations);
  • Third-Party Testing: SGS/BV/TÜV reports for coating weight, adhesion, and formability;
• Global Supply Hubs: Core production bases in China (Hebei, Jiangsu), USA (Indiana, Ohio), and Europe (Germany, Poland); loading ports: Shanghai, Tianjin, Hamburg, Houston.

10. Conclusion

DX53D+Z hot-dip galvanized steel stands as the benchmark for deep-drawable weather-resistant steel, balancing exceptional formability, corrosion protection, and cost-effectiveness. Its ultra-low-carbon substrate and uniform zinc coating make it the preferred choice for industries requiring complex, precision-stamped components—from automotive body parts to home appliance shells.

While DX53D+Z carries a modest premium over standard galvanized steel, its ability to eliminate cracking during deep drawing and reduce maintenance costs (via zinc coating) delivers superior long-term value. For simple forming applications, DX51D+Z offers a cost-effective alternative, but for complex shapes and precision requirements, DX53D+Z remains unmatched.

Backed by EN 10346 compliance, strict quality control, and a global supply chain, DX53D+Z continues to be the top choice for engineers and buyers seeking a reliable, high-performance material for deep-draw and weather-resistant applications.
