1. Key Technical Fundamentals: Composition and Performance

1.1 Chemical Composition: Optimized for Deep-Drawing

DC03 steel’s chemical formulation is refined to prioritize ductility and deformation stability, with stricter impurity control than basic DC01. Its composition (by mass fraction) adheres to global standards:

1.2 Mechanical Properties: Tailored for Complex Shaping

What sets DC03 apart is its balanced mechanical properties, specifically optimized for deep drawing—outperforming entry-level DC01 in ductility and deformation capacity. Key properties (transverse testing, thickness ≥0.5mm):

1.3 Physical and Environmental Traits

• Density: 7.85 g/cm³ (consistent with standard carbon steels, ensuring compatibility with common manufacturing processes)

• Corrosion Resistance: Naturally low (no alloying elements like Cr/Ni); surface treatments are mandatory for rust protection. Electrogalvanized DC03 (DC03+ZE) offers superior corrosion resistance via uniform zinc coatings.

• Carbon Footprint: Cradle-to-gate emission factor for Indonesian-sourced DC03 is 123.45 kg CO₂e/kg (data quality: notable methodological variance, per Sustamize v3.2.0), providing a reference for sustainable manufacturing.

2. Product Configurations: Forms, Surface Quality, and Treatments

2.1 Dimensional Range and Product Forms

DC03 steel is supplied in flexible configurations to meet diverse deep-drawing and precision manufacturing needs:

• Thickness: Standard 0.3–4.0 mm; customized up to 30 mm for specialized applications

• Width: Standard up to 2,000 mm; customizable from 305 mm to 3,000 mm

• Length: Sheets up to 6,000 mm (customizable 1–12 m); coils (inner diameter 508 mm/20", outer diameter ≤2,120 mm)

• Primary Forms: Steel coils, slit coils, precision-cut blanks, and plates—with blanks optimized for direct deep-drawing to reduce material waste

2.2 Surface Quality: Engineered for Finishing and Aesthetics

Surface quality is classified to suit visible components and subsequent coating processes, a key advantage for appearance-critical applications:

• FB Grade (Standard): Permits minor, non-impacting defects; ideal for non-visible structural parts

• FC Grade (Improved): One side free of visible defects, the other meeting FB standards; perfect for appliance housings and automotive interior panels

• FD Grade (Advanced): One side free of coating-affecting defects, the other meeting FB standards; used for high-end visible components requiring flawless finishes

• Surface Finish: Default matte (Ra 0.6–1.8 μm); optional smooth (Ra ≤0.8 μm) or extra smooth (Ra ≤0.4 μm) to enhance paint adhesion and aesthetic appeal

2.3 Specialized Surface Treatments

To address corrosion resistance and application-specific needs, DC03 offers targeted surface treatments—with electrogalvanizing as a core option:

3. Production Process: Precision for Consistency

DC03 steel undergoes a rigorously controlled production process to ensure uniform deep-drawing performance—critical for mass-produced complex components:

1. Pickling: Removes oxide layers from hot-rolled coils using 18–22% hydrochloric acid (60–80℃) to ensure a clean, defect-free surface for rolling

2. Cold Rolling: 5–7 passes with tight thickness tolerance (±0.03 mm) to achieve uniform material properties and dimensional accuracy

3. Continuous Annealing: Heat-treated at 680–780℃ in a continuous furnace to eliminate work hardening, refine grain structure, and maximize ductility

4. Skin Pass Rolling: 0.2–0.8% elongation to optimize flatness, surface finish, and forming stability

5. 100% Quality Inspection: Combines visual inspection with automated defect detection (e.g., surface scanners) to ensure compliance with grade standards

Quality Assurance and Certifications

• Key Certifications: CE, ISO 9001, and IATF 16949 (for automotive applications), validating compliance with global manufacturing standards

• Third-Party Testing: Offers verified testing for chemical composition, mechanical properties (including r90 and n90 values), coating thickness, and corrosion resistance (salt spray testing)

• Sample Provision: Free samples available to validate forming performance and compatibility with specific manufacturing processes before bulk orders

4. Application Advantages and Market Positioning

4.1 Core Application Fields

DC03 steel’s enhanced deep-drawing capability makes it indispensable for manufacturing complex-shaped components across high-value industries:

• Automotive Manufacturing: Deep-drawn inner panels (doors, hoods, trunks), seat frames, instrument panel brackets, and decorative trim—where formability and dimensional stability are critical

• Home Appliances: Washing machine drums, refrigerator door liners, air conditioner evaporator shells, and microwave oven housings—benefiting from its smooth surface and consistent forming

• Precision Packaging: Deep-drawn food cans, aerosol cans, and high-integrity packaging containers—meeting food-grade safety requirements and deep-drawing demands

• General Engineering: Complex brackets, electrical enclosures, and custom-molded structural parts—where high ductility reduces production scrap rates

4.2 DC Series Grade Differentiation

To guide grade selection, here’s how DC03 compares to adjacent DC grades—highlighting its "general deep-drawing" niche:

4.3 Limitations and Optimal Use Guidelines

• Not for Ultra-Deep Drawing: For extreme deformation (e.g., high-end automotive outer panels), upgrade to DC04, DC05, or DC06 (ultra-deep drawing grades)

• No Heat Treatment Strengthening: Low carbon content means quenching/tempering has minimal effect on strength; use cold working or higher-grade DC steel for high-strength requirements

• Surface Protection Required: Uncoated DC03 is prone to oxidation; specify galvanizing, phosphating, or painting for outdoor or humid environments

5. Supply Chain and Value-Added Services

5.1 Order and Logistics Details

• Minimum Order Quantity (MOQ): 1 Ton (higher for precision-cut blanks or specialized treatments)

• Delivery Lead Time: 7–10 days for stock products; 35–55 days for customized orders (thickness, width, or surface treatment)

• Monthly Production Capacity: Up to 4,500 MT from major suppliers, supporting large-scale manufacturing needs

• Loading Ports: China (Shanghai, Tianjin, Qingdao) for Asian/European markets; Hamburg, Rotterdam for European-sourced material

5.2 Value-Added Support

• Customization Services: Tailored thickness/width, precision cutting (laser/plasma), deep-drawing pre-processing, and surface treatment optimization

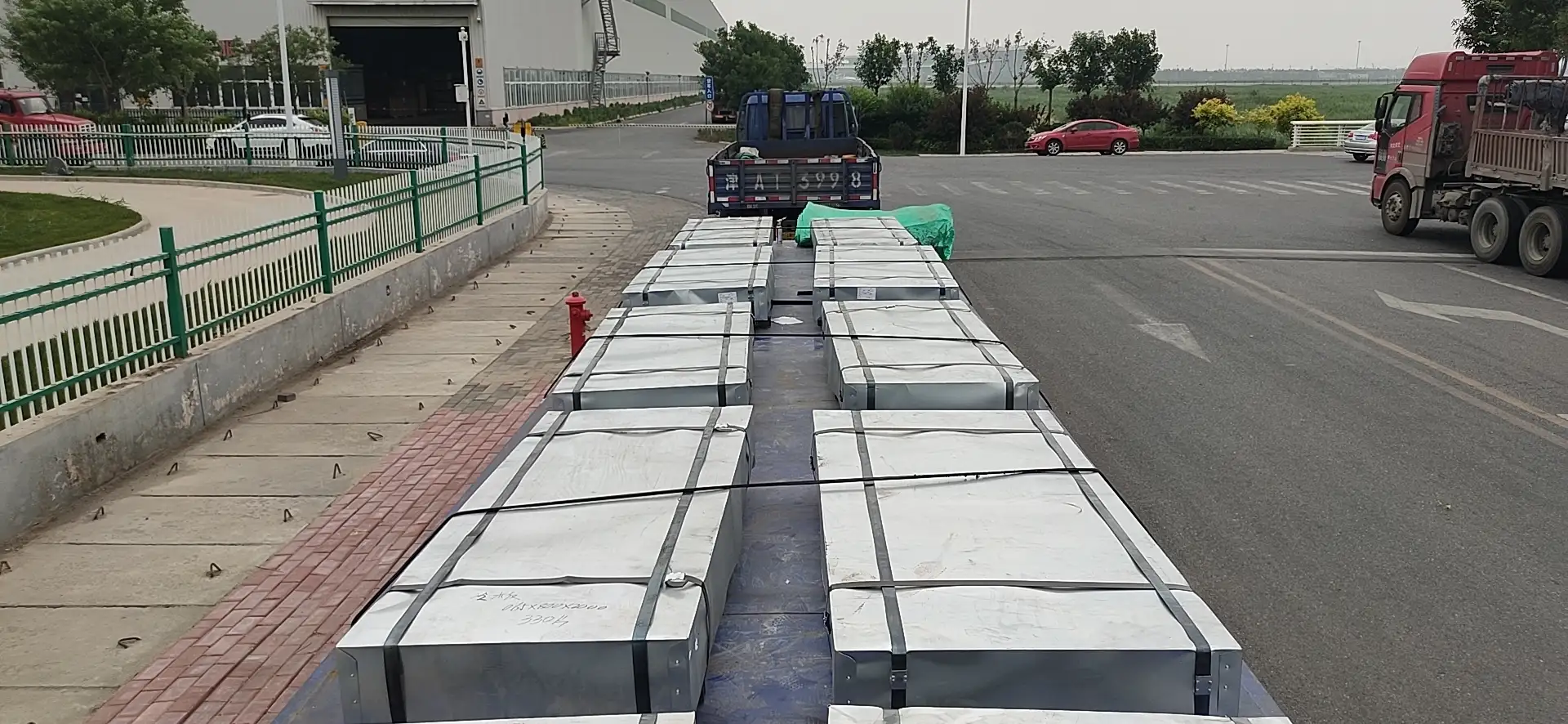

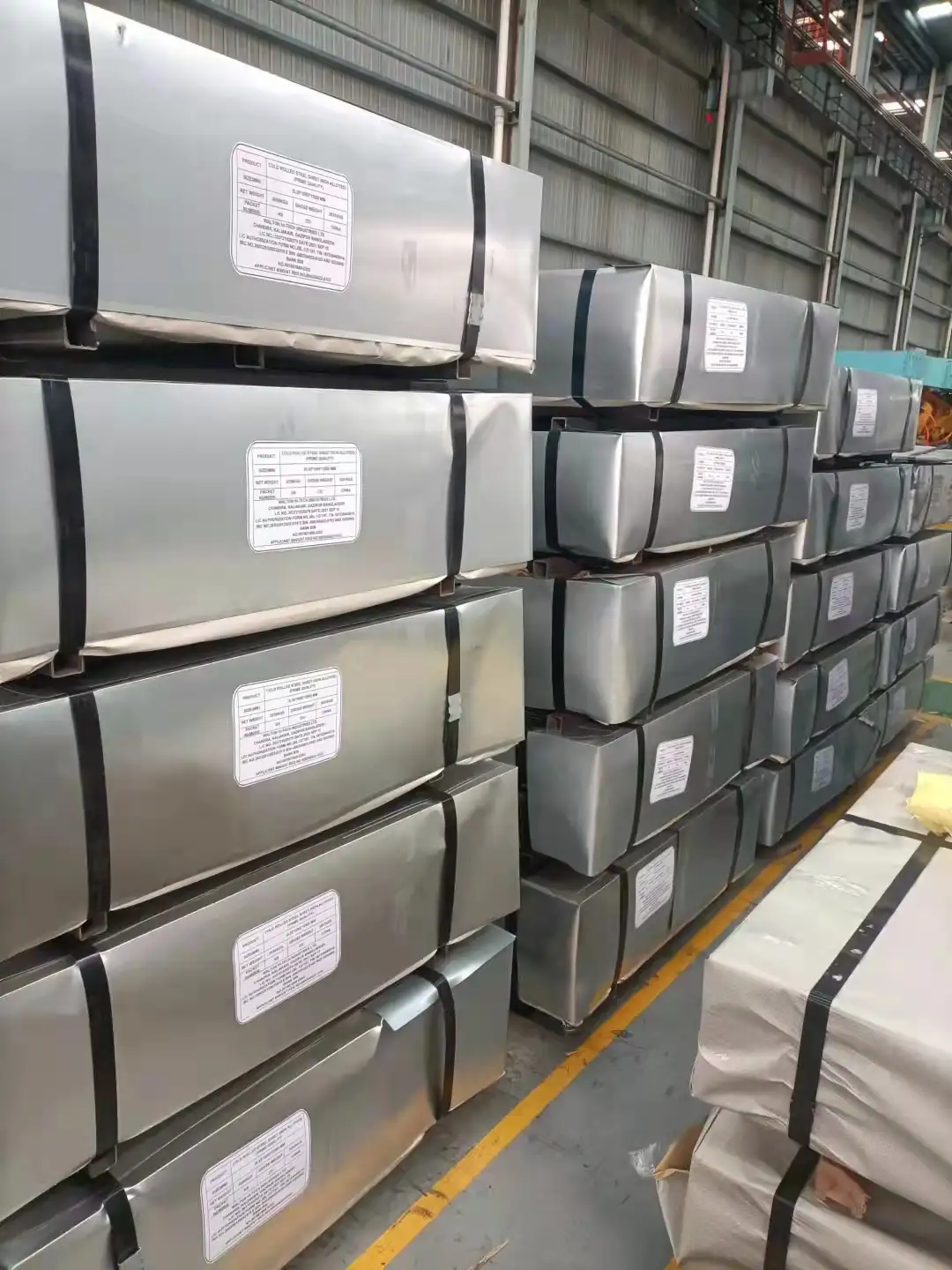

• Packaging Solutions: Seaworthy export packaging (kraft paper + moisture-proof film + galvanized steel protection) with anti-scratch layers for high-surface-quality products

• Global Reach: Exported to over 70 countries, including Germany, France, UK, USA, Japan, and South Korea—with local technical support in key markets

• Engineering Consultation: Expert guidance on material selection, forming parameters, and surface treatment matching to reduce production risks

6. Conclusion

DC03 steel fills a critical gap in the cold-rolled steel market as a high-performance, cost-effective solution for general deep-drawing and complex cold-forming applications. Its refined chemical composition, exceptional ductility, and consistent quality make it the material of choice for industries where forming reliability, dimensional stability, and surface finish matter—from automotive inner panels to precision appliance components. Unlike entry-level DC01, DC03 is engineered to handle complex shapes without compromising integrity, while avoiding the premium cost of ultra-high-performance DC grades (e.g., DC06). Backed by strict international standards, precision production processes, and comprehensive supply chain support, DC03 steel delivers the perfect balance of performance, versatility, and cost-efficiency for manufacturers seeking to optimize complex forming operations. For applications beyond general deep-drawing, upgrading to DC04-DC06 or specifying galvanized variants (DC03+ZE) ensures alignment with more demanding requirements.
