1. Core Definition & Standards

Corten A and Corten B are low-alloy weathering steels designed to resist atmospheric corrosion through a dense, adherent oxide layer that forms over time when exposed to the elements. Both comply with international standards, with slight regional variations:

Corten A: Governed by ASTM A242 (primary standard for low-alloy high-strength weathering steel) and EN 10025-5 (European equivalent: S355J2W), classified as a "general-purpose weathering steel."
Corten B: Complies with ASTM A588 (standard for high-strength low-alloy structural weathering steel) and EN 10025-5 (S355J0W), defined as a "high-strength structural weathering steel."
Shared Advantage: The patina layer (composed of iron oxides, hydroxides, and alloying element oxides) acts as a barrier against further corrosion, extending service life to 50+ years in most outdoor environments—far longer than conventional carbon steel.

2. Key Differences: Chemical Composition & Mechanical Properties

The fundamental distinction between Corten A and Corten B lies in their alloy formulation and resulting mechanical performance, which directly impacts load-bearing capacity and forming flexibility.

2.1 Chemical Composition (Mass Fraction, %)

Element	Corten A (ASTM A242)	Corten B (ASTM A588)	Core Role in Performance
Carbon (C)	≤0.16	≤0.19	Controls strength and weldability; low content ensures ductility
Manganese (Mn)	≤1.20	≤1.50	Enhances strength and toughness; higher in B for improved load capacity
Silicon (Si)	≤0.50	≤0.70	Promotes patina formation and oxidation resistance
Phosphorus (P)	≤0.035	≤0.035	Strictly controlled to avoid brittleness
Sulfur (S)	≤0.035	≤0.035	Minimized to prevent corrosion acceleration
Copper (Cu)	0.20–0.35	0.20–0.35	Critical for patina development (core weathering element)
Chromium (Cr)	0.50–1.25	0.50–1.25	Enhances corrosion resistance and patina stability
Nickel (Ni)	0.05–0.25	0.05–0.25	Improves toughness, especially in cold environments
Vanadium (V)/Niobium (Nb)	–	0.01–0.10 (combined)	Grain refiners that boost strength without sacrificing ductility (unique to B)

2.2 Mechanical Properties (Plate Thickness ≥6mm)

Performance Indicator	Corten A (ASTM A242)	Corten B (ASTM A588)	Key Implication for Applications
Yield Strength (Rp0.2)	≥248 MPa	≥345 MPa	B offers 39% higher yield strength—ideal for load-bearing structures
Tensile Strength (Rm)	414–552 MPa	483–621 MPa	B’s higher tensile strength supports heavier loads and thinner plate designs
Elongation (A50mm)	≥21%	≥18%	A has better ductility—easier for bending, forming, or custom shapes
Impact Toughness (CVN, -20℃)	≥27 J	≥27 J	Equal toughness; both perform well in cold climates
Hardness (HB)	137–179	156–197	B’s higher hardness reflects its enhanced structural integrity

2.3 Corrosion Resistance

Both grades exhibit nearly identical atmospheric corrosion resistance—approximately 4–8 times better than A36 carbon steel—thanks to their shared Cu-Cr-Ni alloy system. The patina forms within 6–12 months of outdoor exposure (faster in humid/marine environments) and remains stable for decades. Corten B’s slightly higher Si content and V/Nb addition marginally improve patina adhesion in harsh conditions (e.g., coastal areas, industrial pollution), but the difference is negligible for most applications.

3. Product Forms & Dimensional Range

Corten A and Corten B are available in similar product configurations, with minor differences in thickness limits due to strength variations:

Specification	Corten A	Corten B
Thickness Range	1.5–100 mm	3–150 mm
Width Range	1000–3000 mm	1000–3000 mm
Length Range	2000–12000 mm	2000–12000 mm
Primary Forms	Steel plates, coils, strips, profiles	Steel plates, coils, structural beams, heavy plates
Key Note	Optimized for thin-to-medium plates	Suited for thick plates and structural sections (supports heavier loads)

4. Application Fields: Which Grade Fits Your Project?

The choice between Corten A and Corten B hinges on load requirements, forming complexity, and structural role—here’s how they map to real-world use cases:

4.1 Corten A: Ideal for Non-Structural/Moderate-Load Applications

Corten A’s balance of corrosion resistance and ductility makes it the top choice for projects requiring forming flexibility or non-critical structural roles:

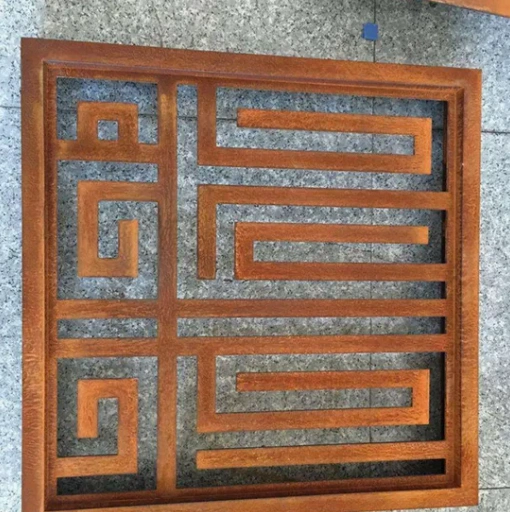

Architecture: Building facades, decorative screens, railings, planters, and artistic installations (easier to bend into custom shapes).

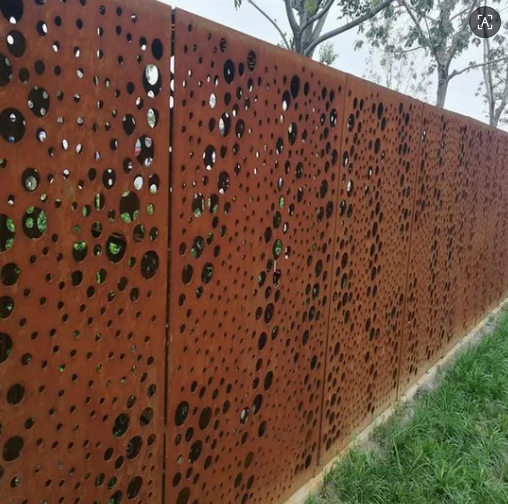

Light Infrastructure: Fencing, guardrails, signposts, and small bridges (pedestrian/bicycle bridges).
General Engineering: Outdoor equipment enclosures, storage tanks (non-pressurized), and agricultural machinery parts.
Key Advantage: Lower cost than Corten B and superior formability—reduces production scrap for curved or complex components.

4.2 Corten B: Designed for Structural/High-Load Applications

Corten B’s high strength-to-weight ratio and structural integrity make it mandatory for load-bearing projects where safety and durability are paramount:

Heavy Infrastructure: Highway/railway bridges, overpasses, support columns, and structural frames (commercial/industrial buildings).
Heavy Engineering: Offshore platforms (secondary structures), port equipment, and large-scale industrial machinery bases.
High-Stress Components: Crane booms, transmission towers, and wind turbine supports (withstands dynamic loads).
Key Advantage: Higher strength allows for thinner plate designs, reducing material and transportation costs while maintaining structural performance.

5. Production & Quality Control

Both grades undergo similar manufacturing processes, with stricter controls for Corten B to ensure consistent strength:

Alloy Smelting: Precise control of Cu, Cr, and Ni (and V/Nb for B) to guarantee weathering performance.
Hot Rolling: Plates are hot-rolled to achieve dimensional accuracy, with Corten B requiring tighter temperature control during cooling to optimize grain structure.
Patina Accelerated Testing: Salt spray testing (500+ hours) and atmospheric exposure trials to verify corrosion resistance.
Certifications: Both meet ASTM/AWS standards for welding (no pre-heat required for plates ≤25mm) and are available with CE, ISO 9001, and EN 10204 3.1 certifications. Corten B additionally complies with structural engineering standards (e.g., AISC) for load-bearing applications.

6. Selection Guide: How to Choose Between Corten A and Corten B

Use this decision framework to align the grade with your project’s core requirements:

Decision Factor	Choose Corten A If…	Choose Corten B If…
Load Requirement	Project is non-structural or low-to-moderate load	Project requires high load-bearing capacity (structural role)
Forming Needs	You need bending, stamping, or custom shapes	Components are flat or simple-cut (minimal forming)
Plate Thickness	Using thin-to-medium plates (≤50mm)	Using thick plates (>50mm) or structural sections
Cost Sensitivity	Budget is a key constraint	Performance and structural safety take priority
Environment	Mild-to-moderate corrosion conditions (inland areas)	Harsh environments (coastal, industrial) or long service life (75+ years)

7. Conclusion

Corten A and Corten B are both exceptional weathering steels, but their design intent is distinct: Corten A is the "formable, cost-effective" choice for non-structural or moderate-load applications, while Corten B is the "high-strength, structural" grade for critical infrastructure and heavy engineering.

Neither grade is "better"—the right selection depends on balancing load capacity, forming complexity, and budget. For decorative or light-use projects where shape customization matters, Corten A delivers optimal value. For bridges, building frames, or heavy machinery that demands strength and durability, Corten B is the industry standard.

Whichever grade you choose, Corten steel’s self-protecting patina, low maintenance, and long service life will reduce lifecycle costs and environmental impact—making it a sustainable alternative to painted carbon steel.
