1. Core Definition & Standard Compliance

1.1 Fundamental Overview

ASTM A588 is a weathering steel grade defined by ASTM International (ASTM A588/A588M) for structural applications requiring enhanced atmospheric corrosion resistance. Its "Corten" moniker (a portmanteau of "corrosion resistance" and "tensile strength") reflects its dual core benefits. Key distinctions include grade variants and performance thresholds:

• Grade Nomenclature:

• "ASTM A588": Primary standard designation; "A" denotes ferrous materials, "588" is the standard number.

• Grades: Gr A (general purpose), Gr B (enhanced low-temperature impact resistance), Gr C (high-strength variant), Gr K (killed steel for improved uniformity).

• Key Aliases: Corten A588, Weathering Steel A588, HSLA Weathering Steel.

• Core Characteristic: Patina Formation—exposure to rain, humidity, and oxygen triggers the formation of a stable, non-flaking Fe₃O₄-Cu-rich oxide layer (patina) within 6–12 months, reducing corrosion rates by 5–10x vs. plain carbon steel.

• Equivalent Grades:

• ASTM: A242 (lower strength weathering steel), A709 Gr 50W (bridge-specific weathering steel);

• European: EN 10025-5 S355J0W/S355J2W (Corten B equivalent);

• Japanese: JIS G 3114 SMA400AW/SMA400BW;

• Chinese: GB/T 4171 Q355NH (Corten A588 equivalent).

1.2 Core Standards

• Primary Standard: ASTM A588/A588M (Standard Specification for High-Strength Low-Alloy Structural Steel with 50 ksi [345 MPa] Minimum Yield Strength for Use in Welded Bridges and Other Structures);

• Complementary Standards: ASTM A6/A6M (dimension tolerances), ASTM A480 (surface finish), ASTM G101 (corrosion testing);

• Quality Certifications: ISO 9001, CE (for European markets), AISC (American Institute of Steel Construction) certification, and third-party testing (SGS, BV, TÜV);

• Critical Requirements: Minimum yield strength ≥345 MPa (50 ksi), atmospheric corrosion resistance index (ACI) ≥6.0, and weldability compliance for structural assembly.

2. Chemical Composition

ASTM A588’s corrosion resistance stems from deliberate additions of alloying elements that promote patina formation and inhibit rust propagation. Below is the standardized chemical composition (mass fraction, %; per ASTM A588/A588M):

Core Alloy Advantage

The synergistic combination of Cu, Cr, and P creates a patina that is both dense and self-healing—unlike the loose, flaking rust of plain carbon steel (A36). This eliminates the need for painting or galvanizing, reducing lifecycle costs by 30–50%.

3. Mechanical & Physical Properties

ASTM A588’s mechanical performance is tailored for structural use, with grade-specific variations in impact resistance. Below are typical values for 6–50mm thick plate (ASTM A588 Gr A/Gr B compliant):

3.1 Physical Properties

• Density: 7.85 g/cm³ (same as conventional steel);

• Melting Point: 1480–1520°C;

• Thermal Conductivity: 50 W/m·K (room temperature);

• Electrical Conductivity: 10% IACS (poor conductor, suitable for structural use);

• Patina Formation: 6–12 months in outdoor exposure (faster in humid/coastal environments);

• Service Life: 50–100 years in rural/industrial areas; 30–70 years in coastal zones (with optional supplemental coating).

4. Product Forms & Dimensional Range

ASTM A588 is supplied in diverse configurations to meet structural and architectural needs:

4.1 Core Product Forms

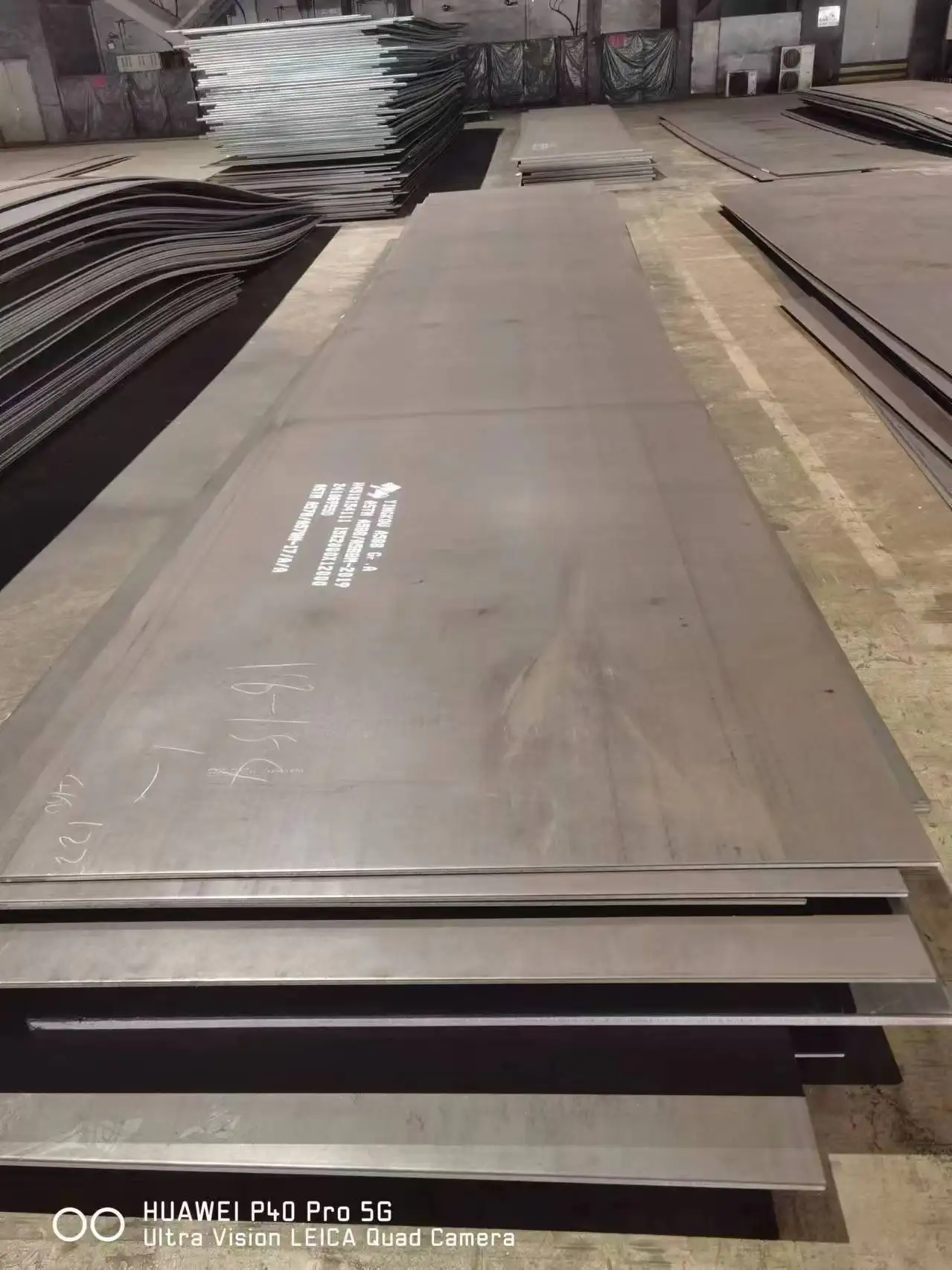

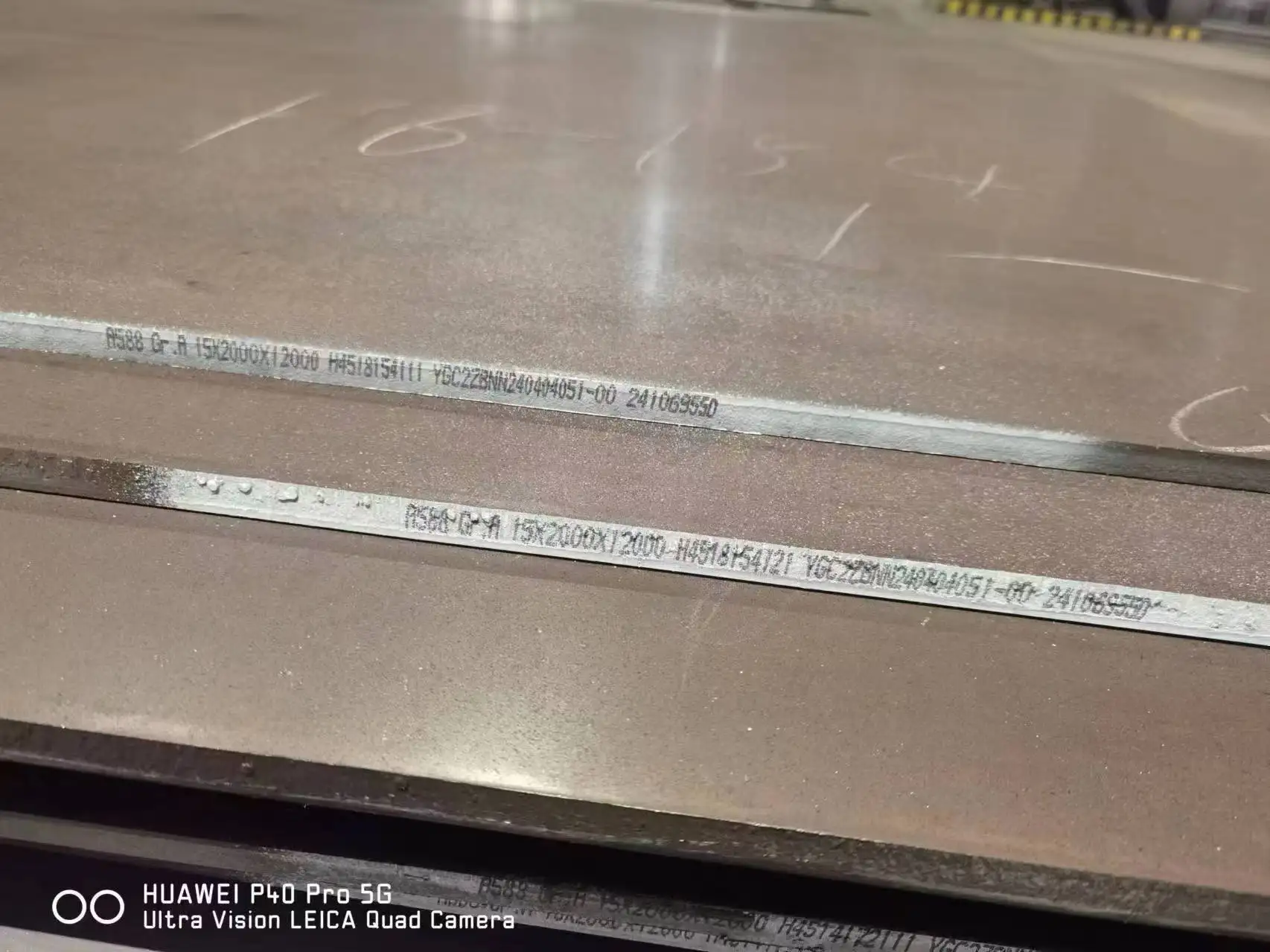

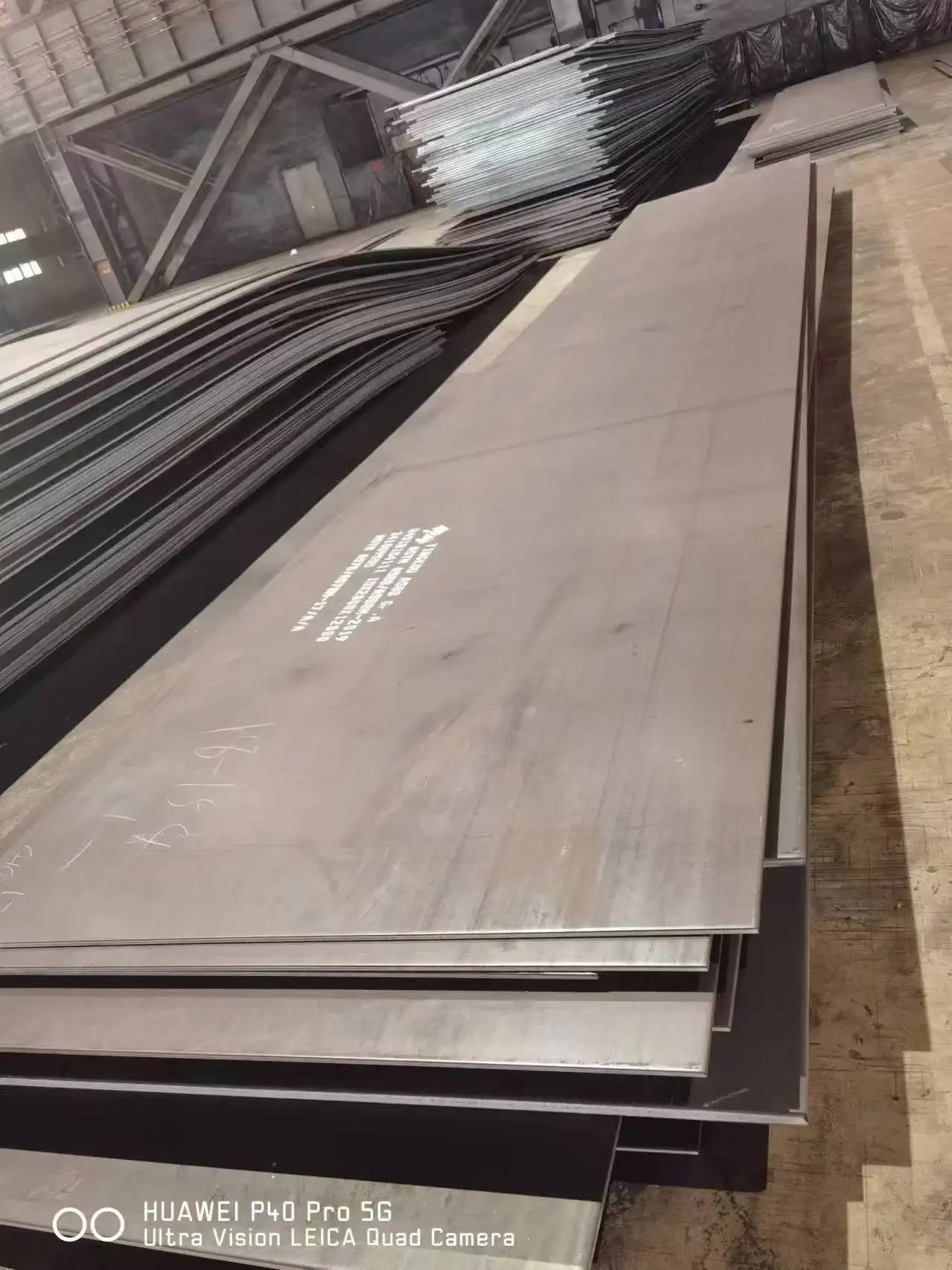

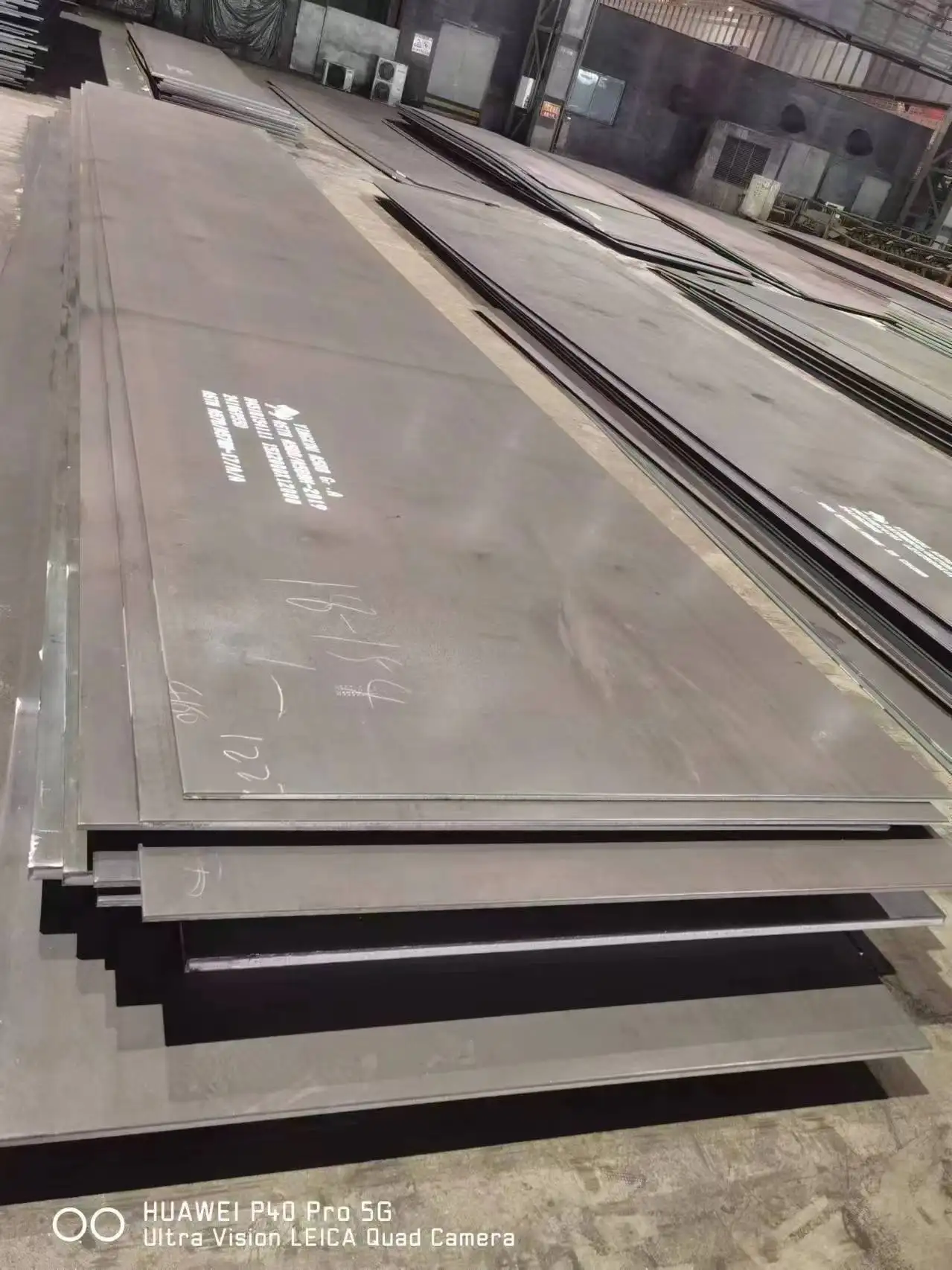

• Steel Plates: Hot-rolled plates (most common for bridges, buildings, and sculptures);

• Structural Shapes: I-beams, H-beams, channels, angles, and tees (for framing and infrastructure);

• Sheets/Coils: Cold-rolled or hot-rolled coils/sheets (for cladding, panels, and decorative applications);

• Pipes/Tubes: Seamless or welded pipes (for outdoor pipelines and industrial equipment);

• Custom Fabrications: Weathering steel sculptures, containers, and modular structures.

4.2 Dimensional Range

• Thickness: Plates 3–150mm (common: 6mm, 10mm, 12mm, 20mm); sheets 0.8–6mm;

• Width: Plates 1000–4000mm (standard: 1250mm, 1500mm, 2000mm); coils up to 2000mm;

• Length: Plates 2000–12000mm; coils up to 300m;

• Dimensional Tolerance: Thickness ±0.5mm (plates) to ±0.05mm (sheets); width ±1mm (standard); length ±2mm (standard).

4.3 Surface Quality & Treatments

• As-Rolled Surface: Mill scale finish; patina forms naturally over time (most common for structural use);

• Pickled Surface: Acid-washed to remove mill scale; accelerates uniform patina formation;

• Weathered Finish: Pre-weathered at the factory to simulate natural patina (for architectural cladding);

• Clear Coat: Optional transparent coating to preserve the patina and prevent staining of adjacent materials.

5. Production Process & Quality Control

ASTM A588 requires precision manufacturing to ensure consistent alloy distribution and patina performance:

1. Raw Material Preparation: Low-carbon steel scrap + alloying elements (Cu, Cr, P, Ni) are selected to meet chemical composition requirements;

2. Smelting: Melting in basic oxygen furnaces (BOF) or electric arc furnaces (EAF); degassing to remove impurities (O₂, H₂);

3. Continuous Casting: Molten steel cast into slabs, billets, or blooms; homogenization annealing to eliminate segregation;

4. Hot Rolling: Slabs heated to 1100–1250°C; hot-rolled to target thickness (plates/shapes) or coil form;

5. Controlled Cooling: Accelerated cooling (air or water) to refine grain structure and enhance strength;

6. Surface Treatment: Optional pickling (hydrochloric acid) to remove mill scale; shot blasting for improved surface uniformity;

7. Quality Inspection:

• Chemical Testing: Spectrometric analysis (ASTM E1086) to verify alloy composition and ACI compliance;

• Mechanical Testing: Tensile, bend, and impact tests (ASTM E23) for each production batch;

• Corrosion Testing: Atmospheric exposure testing (ASTM G140) and salt spray testing (ASTM B117);

• Non-Destructive Testing (NDT): Ultrasonic testing (UT, ASTM A609) for internal defects; visual inspection for surface flaws;

• Patina Validation: Accelerated weathering tests to confirm uniform rust layer formation.

6. Core Applications

ASTM A588’s combination of 耐候性，high strength, and low maintenance makes it ideal for outdoor and structural applications:

6.1 Construction & Architecture

• Building facades, curtain walls, and roofing (e.g., museums, stadiums, public art installations);

• Structural framing, columns, and beams for industrial buildings and warehouses;

• Outdoor sculptures and landscape design (patina aesthetic is a key architectural feature);

• Rationale: 免涂装 (no painting required) reduces maintenance costs; patina develops a unique, earthy appearance over time.

6.2 Infrastructure & Transportation

• Bridges (highway, railway, and pedestrian bridges) – replaces painted carbon steel;

• Highway guardrails, sign structures, and noise barriers;

• Railway cars, shipping containers, and port equipment;

• Rationale: Withstands exposure to rain, salt, and temperature fluctuations; 50+ year service life with minimal maintenance.

6.3 Industrial & Energy

• Outdoor storage tanks, silos, and pipelines (oil, gas, and chemical industries);

• Wind turbine towers and solar panel supports;

• Agricultural equipment (tractors, harvesters) and mining machinery;

• Rationale: Resists corrosion from industrial fumes, fertilizers, and harsh working environments.

6.4 Environmental & Sustainable Projects

• Retention walls, erosion control structures, and flood barriers;

• Green roofs and living walls (compatible with vegetation);

• Recyclable construction materials (100% recyclable, aligning with circular economy goals);

• Rationale: Low lifecycle carbon footprint (no coating chemicals; reduced maintenance-related emissions).

7. Comparison with Similar Materials

8. Cost & Pricing Considerations (2025 Q4 Data)

ASTM A588 commands a premium over conventional carbon steel but offers long-term savings via reduced maintenance. Below are global price ranges:

8.1 Key Pricing Drivers

• Alloy Content: Cu, Cr, and Ni additions add 15–25% to base steel cost;

• Product Form: Plates cost 10–15% more than coils; structural shapes (beams/angles) cost 20–30% more than plates;

• Grade: Gr B (low-temperature impact) costs 5–8% more than Gr A;

• Order Volume: Bulk orders (≥50 tons) unlock 10–15% discounts vs. small orders (<5 tons);

• Surface Treatment: Pre-weathered or pickled surfaces cost 10–15% more than as-rolled.

8.2 Cost Optimization Strategies

• Bulk Purchasing: Partner with suppliers for project-wide orders to reduce unit costs;

• Standard Grades: Use Gr A for non-cold-climate applications (saves 5–8% vs. Gr B);

• As-Rolled Surface: Opt for natural patina formation instead of pre-weathering (saves 10–15%);

• Domestic Sourcing: Chinese-manufactured ASTM A588 offers 20–30% cost savings vs. Western suppliers with comparable quality.

9. Supply Chain & Value-Added Services

• Minimum Order Quantity (MOQ): 1 ton (standard plates); 5 tons (structural shapes); 20 tons (custom fabrications);

• Delivery Lead Time: 7–14 days (stock plates); 15–30 days (structural shapes); 30–45 days (custom orders);

• Packaging: Seaworthy export packaging (kraft paper + moisture-proof film + steel strips + wooden pallets) to prevent premature rusting during transport;

• Value-Added Services:

• Precision cutting (plasma, laser, waterjet) to custom dimensions;

• Bending, welding, and fabrication into finished structures;

• Pre-weathering and clear coating for architectural applications;

• Technical support (patina management, welding guidelines);

• Third-party testing and certification for critical infrastructure;

• Global Supply Hubs: Core production bases in China (Hebei, Jiangsu), USA (Pennsylvania, Indiana), and Europe (Germany, Poland); loading ports cover major logistics hubs (Shanghai, Tianjin, Houston, Hamburg).

10. Conclusion

ASTM A588 Corten steel stands as the benchmark for sustainable, low-maintenance structural steel, offering an unbeatable balance of atmospheric corrosion resistance, high strength, and architectural versatility. Its ability to form a self-protective patina eliminates the need for costly coatings, reducing lifecycle costs and environmental impact—making it a preferred choice for infrastructure, construction, and outdoor applications worldwide.

While ASTM A588 carries a modest initial premium over conventional carbon steel, its 50+ year service life and minimal maintenance requirements deliver superior long-term value. Gr A excels in general structural use, while Gr B is tailored for cold climates, and custom fabrications cater to architectural and artistic needs. Backed by global standards, strict quality control, and a mature supply chain, ASTM A588 remains the top choice for engineers, architects, and buyers seeking a durable, cost-effective, and sustainable material for outdoor and structural projects.
