1. Core Definition & Scope of ASTM A213

ASTM A213 establishes requirements for seamless, straight-length or coiled tubes manufactured from austenitic stainless steels and heat-resistant alloy steels. Its primary scope includes:

• Tube Type: Seamless (no welded joints, ensuring structural integrity under HTHP conditions);

• Material Category: Austenitic stainless steel (e.g., TP304, TP316Ti) and chromium-molybdenum (Cr-Mo) alloy steel (e.g., T5, T9);

• Service Environment: Designed for temperatures ranging from -29°C to 1,093°C (-20°F to 2,000°F) and pressures up to 345 MPa (50,000 psi);

• Key Applications: Heat exchangers, boilers (superheaters, reheaters), condensers, furnaces, chemical reactors, and oil/gas pipelines—where resistance to corrosion, creep, and thermal fatigue is critical.

The standard is frequently referenced alongside complementary specifications such as ASTM A312 (stainless steel pipes for general service) and ASTM A269 (stainless steel tubes for general corrosion service), but ASTM A213 is uniquely optimized for HTHP scenarios.

2. Popular Grades & Classification

ASTM A213 encompasses dozens of grades, but two categories dominate industrial use: austenitic stainless steel (TP-series) and Cr-Mo alloy steel (T-series). Below are the most widely adopted grades, their composition highlights, and design intent:

2.1 Austenitic Stainless Steel Grades (TP-Series)

These grades are characterized by high chromium (Cr) and nickel (Ni) content, delivering exceptional corrosion resistance and high-temperature stability. Titanium (Ti) or niobium (Nb) additions (e.g., TP316Ti, TP321) prevent sensitization (intergranular corrosion) during welding or long-term high-temperature exposure.

2.2 Cr-Mo Alloy Steel Grades (T-Series)

These heat-resistant alloys prioritize creep resistance and thermal fatigue performance, making them ideal for high-temperature, pressure-bearing components in power plants and industrial furnaces.

3. Key Technical Parameters

3.1 Dimensional Range

ASTM A213 tubes are supplied in flexible dimensions to meet diverse equipment requirements:

• Outer Diameter (OD): 12.7 mm (0.5 inches) to 323.8 mm (12.75 inches);

• Wall Thickness (WT): 1.24 mm (0.049 inches) to 25.4 mm (1.0 inch);

• Length: Straight lengths (3–12 meters) or coils (up to 150 meters for small OD);

• Dimensional Tolerance: OD tolerance ±0.5% (up to 50 mm OD) or ±0.3 mm (larger OD); WT tolerance ±10% (standard) or ±5% (precision).

3.2 Mechanical Properties (Typical Values for Common Grades)

3.3 Corrosion & High-Temperature Performance

• Corrosion Resistance: TP-series grades resist pitting, crevice corrosion, and general corrosion in acidic, alkaline, and marine environments; TP316Ti outperforms TP304 in chloride-rich media (e.g., seawater heat exchangers);

• Creep Resistance: T-series grades maintain structural integrity under long-term HTHP exposure—T91 exhibits <0.1% creep deformation after 100,000 hours at 650°C;

• Oxidation Resistance: All grades form a protective oxide layer (Cr₂O₃) at high temperatures, preventing material degradation in oxidizing atmospheres.

4. Production Process & Quality Control

ASTM A213 tubes undergo rigorous manufacturing and testing to meet the standard’s strict requirements:

1. Raw Material Selection: High-purity billets (electric arc furnace + vacuum degassing) to minimize impurities (S ≤0.030%, P ≤0.035%);

2. Seamless Forming:

• Hot piercing: Billet heated to 1,100–1,250°C and pierced into a hollow shell;

• Cold rolling/cold drawing: For precision dimensions and surface finish;

• Annealing: Solution annealing (1,010–1,120°C for stainless steel) or normalizing + tempering (for Cr-Mo alloys) to optimize microstructure;

3. Surface Treatment: Pickling (to remove oxide scale) and passivation (to enhance corrosion resistance);

4. Non-Destructive Testing (NDT):

• Ultrasonic testing (UT): 100% inspection for internal/external defects;

• Eddy current testing (ECT): For surface defect detection;

• Radiographic testing (RT): Optional for critical applications (e.g., nuclear);

5. Mechanical & Chemical Testing: Tensile, bend, and impact tests; spectrometric analysis for chemical composition verification;

6. Pressure Testing: Hydrostatic testing at 1.5× design pressure to ensure leak tightness.

Certifications

All ASTM A213 tubes come with EN 10204 3.1/3.2 certification, and most manufacturers hold ISO 9001, ISO 14001, and API Q1 certifications. For nuclear applications, ASME Section III certification is available.

5. Core Applications

ASTM A213 tubing is indispensable in industries requiring reliable performance under extreme conditions:

• Power Generation: Boiler superheaters/reheaters, steam turbines, and heat recovery steam generators (HRSGs) (T5, T91, TP347 grades);

• Chemical & Petrochemical: Heat exchangers, reactors, and process pipelines handling corrosive media (TP316Ti, TP321 grades);

• Oil & Gas: Downhole tubing, refinery furnaces, and offshore platform heat exchangers (T22, TP316Ti grades);

• Nuclear Energy: Primary/secondary coolant loops (TP347, T91 grades);

• Pharmaceutical & Food Processing: Sanitary tubing (TP304, TP316Ti) resistant to cleaning chemicals and high temperatures.

6. Selection Guide: How to Choose the Right Grade

7. Supply Chain & Value-Added Services

• Minimum Order Quantity (MOQ): 1 ton (standard grades); 5 tons for custom dimensions/grades;

• Delivery Lead Time: 7–14 days for stock grades; 30–45 days for custom orders;

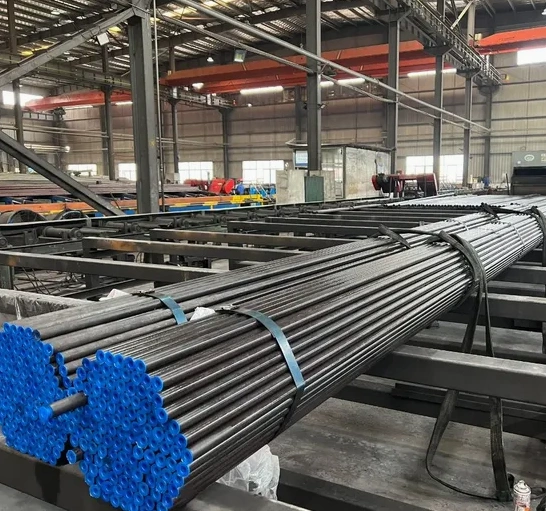

• Packaging: Seaworthy export packaging (plastic film + kraft paper + steel strips) with anti-rust oil for corrosion protection;

• Value-Added Services: Cut-to-length, threading, flanging, and custom bending; third-party testing (SGS, BV, TÜV);

• Global Reach: Supplied to over 80 countries, with key loading ports in Shanghai, Tianjin (China), Houston (USA), and Rotterdam (Europe).

8. Conclusion

ASTM A213 seamless tubing stands as the gold standard for HTHP and corrosive environment applications, offering unmatched reliability, versatility, and performance. Its diverse grade portfolio—from cost-effective T5 and TP304 to high-performance T91 and TP316Ti—enables precise alignment with project requirements, minimizing lifecycle costs while maximizing safety. Backed by strict manufacturing controls, comprehensive testing, and global supply chain support, ASTM A213 remains the preferred choice for critical equipment in energy, chemical, and industrial sectors worldwide. When selecting a grade, prioritize service temperature, corrosion conditions, and pressure requirements to ensure optimal performance and longevity.
