ASTM A203/A203M Pressure Vessel Steel: A Comprehensive Guide to Nickel-Alloyed Cryogenic Steel

Product Details

1. Core Definition & Standard Compliance

1.1 Fundamental Overview

ASTM A203/A203M is a low-alloy steel formulated with nickel as the primary alloying element, optimized to enhance cryogenic toughness and prevent brittle fracture in low-temperature pressure vessels. Key naming and classification details:

Standard Nomenclature:
- “ASTM A203/A203M”: Primary standard—”A” denotes ferrous materials, “203” is the standard identifier, “M” indicates metric unit compliance;
- Grades: Differentiated by nickel content (0.40–3.50%), which directly correlates to low-temperature performance:
  - Grade A (0.40–0.70% Ni): For -29°C (-20°F) service;
  - Grade B (0.70–1.00% Ni): For -45°C (-50°F) service;
  - Grade C (1.00–1.30% Ni): For -60°C (-75°F) service;
  - Grade D (1.30–1.60% Ni): For -73°C (-100°F) service;
  - Grade E (1.60–2.00% Ni): For -87°C (-125°F) service;
  - Grade F (2.00–2.50% Ni): For -101°C (-150°F) service;
  - Grade G (2.50–3.00% Ni): For -120°C (-185°F) service;
  - Grade H (3.00–3.50% Ni): For -150°C (-230°F) service (most demanding cryogenic applications).
Key Aliases: ASTM A203 Pressure Vessel Steel, Nickel-Alloyed Low-Temperature Steel, Cryogenic Vessel Steel A203M.
Equivalent Grades:
- European: EN 10028-4 P285NH (Grade A equivalent), EN 10028-4 P355NL2 (Grade F equivalent);
- Chinese: GB/T 3531 16MnDR (Grade B equivalent), GB/T 3531 09MnNiDR (Grade F equivalent);
- Japanese: JIS G 3118 SL410N (Grade A equivalent), JIS G 3118 SL590N (Grade E equivalent);
- API: API 6A (for oilfield pressure vessels, compatible with Grade B/F).

1.2 Core Standards

Primary Standard: ASTM A203/A203M (Standard Specification for Nickel-Alloy Steel Plates for Pressure Vessels Suitable for Low-Temperature Service);
Complementary Standards: ASTM A6/A6M (dimension tolerances), ASTM A370 (mechanical testing), ASTM E23 (impact testing), ASME Section VIII Div. 1 (pressure vessel design);
Quality Certifications: ISO 9001, ASME U-Stamp Certification (for pressure vessel use), CE (for European markets), and third-party certifications (SGS, BV, TÜV) for material and weld quality;
Critical Requirements:
- Mandatory cryogenic impact testing (CVN) at service temperature (e.g., ≥27 J for Grade F at -101°C);
- Minimum yield strength (YS) 240–380 MPa (varies by grade);
- Weldability compliance (no pre-heat required for thin plates <25mm);
- Strict impurity control (P ≤0.035%, S ≤0.035%) to avoid cold brittleness.

2. Chemical Composition

ASTM A203/A203M’s nickel-alloyed formulation is tailored to balance cryogenic toughness, strength, and weldability—with nickel content as the key variable across grades. Chemical composition (mass fraction, %; per ASTM A203/A203M):

Element	Grade A	Grade B	Grade F	Grade H	Core Function
Carbon (C)	≤0.20%	≤0.20%	≤0.18%	≤0.18%	Enhances strength; controlled to preserve weldability and cryogenic toughness
Manganese (Mn)	0.70–1.30%	0.70–1.30%	0.70–1.40%	0.70–1.40%	Improves ductility and weld fusion; refines grain structure
Phosphorus (P)	≤0.035%	≤0.035%	≤0.030%	≤0.030%	Strictly limited to prevent cold brittleness and intergranular corrosion
Sulfur (S)	≤0.035%	≤0.035%	≤0.030%	≤0.030%	Minimized to avoid hot cracking during welding and reduce fracture risk
Silicon (Si)	0.15–0.35%	0.15–0.35%	0.15–0.35%	0.15–0.35%	Enhances oxidation resistance and weld fluidity
Nickel (Ni)	0.40–0.70%	0.70–1.00%	2.00–2.50%	3.00–3.50%	Primary cryogenic toughener—raises ductile-brittle transition temperature (DBTT) to enable low-temperature service
Chromium (Cr)	≤0.30%	≤0.30%	≤0.30%	≤0.30%	Trace element; improves atmospheric corrosion resistance
Copper (Cu)	≤0.30%	≤0.30%	≤0.30%	≤0.30%	Trace element; enhances toughness and corrosion resistance
Iron (Fe)	Remainder	Remainder	Remainder	Remainder	Base metal; provides structural integrity and pressure resistance

Key Alloy Advantage

Nickel is the defining alloying element—each 0.5% increase in nickel content lowers the ductile-brittle transition temperature (DBTT) by ~15°C, enabling reliable performance in extreme cryogenic environments. Unlike carbon-manganese steels (e.g., ASTM A516), A203/A203M avoids brittle fracture at sub-zero temperatures, making it the gold standard for low-temperature pressure vessels.

3. Mechanical & Physical Properties

ASTM A203/A203M’s mechanical performance is dominated by cryogenic toughness, with strength and ductility tailored to pressure vessel service. Typical values for 10–50mm thick plates (normalized temper, ASTM A203/A203M compliant):

Performance Indicator	Grade A (Typical)	Grade B (Typical)	Grade F (Typical)	Grade H (Typical)	Key Implication for Applications
Yield Strength (Rp0.2, ≥MPa)	240	260	290	310	Meets medium-to-high pressure vessel requirements (up to 20 MPa)
Tensile Strength (Rm, MPa)	415–550	430–570	480–620	510–650	Balances strength and ductility for vessel fabrication
Elongation (A50mm, ≥%)	22	22	24	24	Adequate ductility to withstand forming and thermal cycling
Cryogenic Impact Toughness (CVN, J)	≥27 (-29°C)	≥27 (-45°C)	≥27 (-101°C)	≥27 (-150°C)	Prevents brittle fracture in cryogenic service
Brinell Hardness (HB)	110–150	120–160	130–170	140–180	Resists wear during fabrication and service
Burst Pressure (MPa, 20mm wall)	38–48	40–50	45–55	48–58	Withstands overpressure in low-temperature vessels

3.1 Physical Properties

Density: 7.85 g/cm³ (standard low-alloy steel density);
Melting Point: 1470–1510°C (varies slightly by nickel content);
Thermal Conductivity: 45–50 W/m·K (room temperature); 25–30 W/m·K (-100°C);
Thermal Expansion Coefficient: 11.2×10⁻⁶/℃ (20–100℃); 8.5×10⁻⁶/℃ (-100–0℃);
Corrosion Resistance: Moderate—resists atmospheric and neutral aqueous corrosion; requires protective coatings for acidic or marine environments;
Weldability: Excellent—compatible with SMAW, GMAW, GTAW, and SAW welding processes; pre-heat required only for thick plates (>25mm) or high-restraint joints.

4. Product Forms & Dimensional Range

ASTM A203/A203M is primarily supplied as plates for pressure vessel fabrication, with configurations tailored to industrial needs:

4.1 Core Product Forms

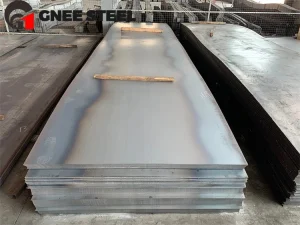

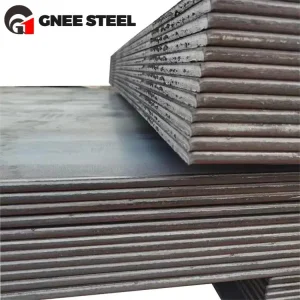

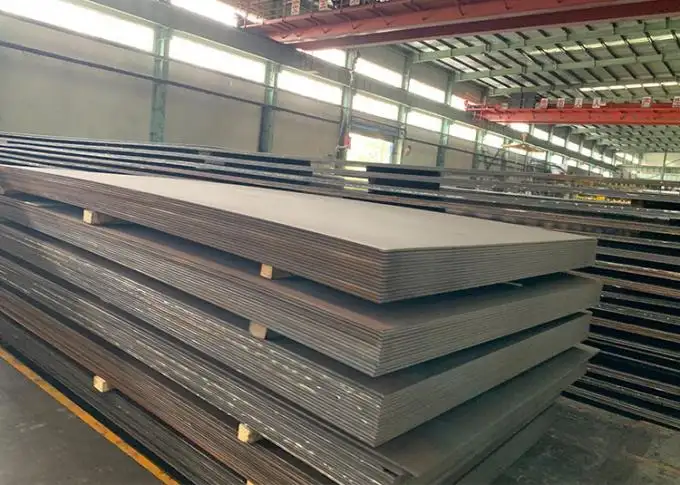

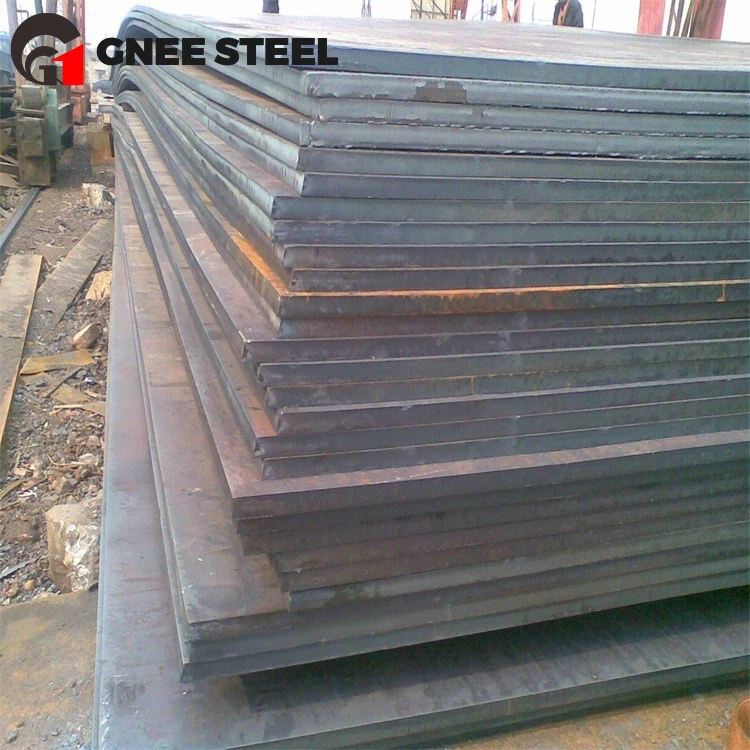

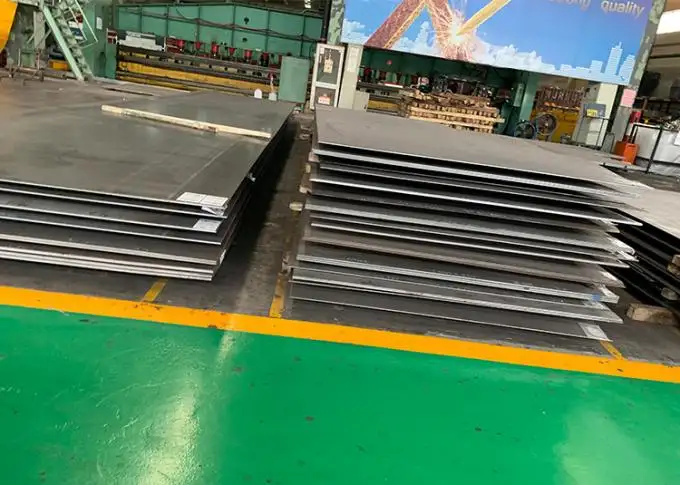

Hot-Rolled Plates: Primary form for pressure vessel shells, heads, and flanges;
Quenched & Tempered (Q&T) Plates: For Grade G/H (high nickel content) to enhance cryogenic toughness;
Cut Blanks: Custom-cut shapes for vessel heads, nozzles, and specialized components;
Welded Plates: Large-diameter vessel shells (via submerged arc welding of plates).

4.2 Dimensional Range

Thickness: 6mm–200mm (common: 10mm, 16mm, 20mm, 30mm, 50mm);
Width: 1000mm–4000mm (standard: 1500mm, 2000mm, 2500mm);
Length: 2000mm–12000mm (standard: 6000mm, 8000mm, 10000mm);
Dimensional Tolerance: Thickness ±0.5mm (≤50mm) to ±1.0mm (>50mm); width ±1mm; length ±50mm.

4.3 Surface & Heat Treatments

Surface Finishes:
- Hot-Rolled Mill Finish: As-rolled surface (for immediate fabrication);
- Shot Blasted Finish: Cleaned to Sa 2.5 standard (preparation for welding or coating);
- Pickled Finish: Acid-washed to remove oxide scale (for critical weld joints);
Heat Treatments:
- Normalizing: 880–920°C (air cooling) – Refines grain structure, improves toughness (standard for Grades A–F);
- Quenching & Tempering (Q&T): 900–950°C (quenching) + 600–650°C (tempering) – Enhances cryogenic toughness for Grades G/H;
- Stress Relieving: 580–620°C – Reduces residual stress after welding (mandatory for pressure vessels).

5. Production Process & Quality Control

ASTM A203/A203M requires precision manufacturing to ensure cryogenic performance and pressure integrity:

Raw Material Preparation: Low-carbon steel scrap + nickel alloy additions (certified purity ≥99.9%) to meet grade-specific nickel content;
Smelting: Melting in electric arc furnaces (EAF) or basic oxygen furnaces (BOF); degassing to remove impurities (O₂, H₂) and ensure chemical uniformity;
Continuous Casting: Molten steel cast into slabs; homogenization annealing (850–900°C) to eliminate segregation;
Hot Rolling: Slabs heated to 1150–1200°C; hot-rolled to target thickness; controlled cooling to prevent grain coarsening;
Heat Treatment: Normalizing or Q&T (per grade) to optimize cryogenic toughness;
Surface Preparation: Shot blasting or pickling to remove oxide scale;
Quality Inspection (ASTM A203/A203M Mandatory):
- Chemical Testing: High-precision spectrometric analysis (ASTM E1086) to verify nickel content and impurities;
- Mechanical Testing: Tensile, bend, and hardness tests for each production batch; cryogenic impact testing (ASTM E23) at service temperature;
- Non-Destructive Testing (NDT):
  - Ultrasonic Testing (UT): 100% thickness inspection and internal flaw detection (ASTM A609);
  - Magnetic Particle Testing (MT)/Liquid Penetrant Testing (PT): Surface flaw detection on edges and weld joints;
  - Radiographic Testing (RT): Weld inspection for critical components;
- Dimensional Inspection: Laser measurement for thickness, width, flatness, and straightness;
- Cryogenic Validation: Thermal cycling tests (-150°C to 20°C) for Grades G/H to confirm toughness retention.

6. Core Applications

ASTM A203/A203M’s exceptional cryogenic toughness and pressure resistance make it indispensable for low-temperature pressure vessel applications:

6.1 Liquefied Natural Gas (LNG) Industry

LNG storage tanks (above-ground and underground);
LNG transport vessels (ships, trucks, and pipelines);
Cryogenic separators and heat exchangers;
Rationale: Grade F/H withstands -162°C (LNG boiling point) without brittle fracture; high nickel content ensures long-term toughness.

6.2 Petrochemical & Chemical Industry

Low-temperature reactors and distillation columns;
Refrigeration systems (ammonia, ethylene, and propane);
Cryogenic storage for liquid oxygen (LOX), liquid nitrogen (LIN), and liquid argon (LAR);
Rationale: Resists thermal cycling and corrosive process fluids; maintains integrity at -101°C to -150°C.

6.3 Oil & Gas Industry

Offshore and onshore cryogenic pressure vessels;
Natural gas processing plants (dew point control units);
Wellhead equipment for arctic or subsea environments;
Rationale: Withstands low temperatures and high pressure; compatible with oilfield chemicals.

6.4 Industrial & Energy

Cryogenic boilers and pressure vessels for power generation;
Pharmaceutical and food processing (cryogenic freezing equipment);
Aerospace ground support (rocket fuel storage, liquid hydrogen handling);
Rationale: Reliable performance in extreme temperature ranges; meets strict safety standards for pressure-containing equipment.

7. Comparison with Similar Grades

Grade	Key Advantage vs. ASTM A203/A203M	Key Disadvantage vs. ASTM A203/A203M	Typical Application
ASTM A516 Gr. 70	Lower cost; suited for ambient temperatures	Poor cryogenic toughness (<-29°C)	Ambient-pressure vessels
ASTM A387 Gr. 11	Higher high-temperature strength	Inferior cryogenic performance	High-temperature pressure vessels
EN 10028-4 P355NL2	Similar nickel content (Grade F equivalent)	Limited availability in thick plates (>100mm)	European low-temperature vessels
GB/T 3531 09MnNiDR	Lower cost (Chinese domestic)	Narrower nickel content range	Chinese low-temperature infrastructure

8. Cost & Pricing Considerations (2025 Q4 Data)

ASTM A203/A203M’s pricing is driven by nickel content, thickness, grade, and order volume—with higher-nickel grades commanding significant premiums:

Market Segment	Grade B Price (USD/ton)	Grade F Price (USD/ton)	Grade H Price (USD/ton)	Notes
Chinese Domestic (Ex-Works)	1200–1500	1800–2200	2500–3000	Tax-included; 20mm thick, normalized
Chinese Export (FOB)	1400–1700	2100–2500	2800–3300	Bulk orders (≥50 tons)
US Market (Delivered)	1800–2200	2600–3100	3500–4000	Includes import duties + logistics
European Market (Delivered)	2000–2400	2800–3300	3800–4300	Includes CE/ASME certification

8.1 Key Pricing Drivers

Nickel Content: Grade H (3.00–3.50% Ni) costs 2–2.5x more than Grade B (0.70–1.00% Ni) (linked to LME nickel prices: 2025 Q4 ~$18,000/ton);
Thickness: Plates >50mm cost 20–30% more than thin plates (<20mm) due to rolling complexity;
Heat Treatment: Q&T plates cost 15–20% more than normalized plates;
Order Volume: Bulk orders (≥100 tons) unlock 10–15% discounts vs. small orders (<20 tons);
Certification: ASME U-Stamp adds 5–10% to base cost.

8.2 Cost Optimization Strategies

Grade Right-Sizing: Select the lowest nickel grade that meets service temperature (e.g., Grade B for -45°C vs. Grade F for -101°C);
Bulk Purchasing: Partner with manufacturers for project-wide orders to reduce unit costs;
Domestic Sourcing: Chinese-manufactured A203/A203M offers 25–35% cost savings vs. Western suppliers with comparable ASME certification;
Standard Thickness: Opt for common thicknesses (10–30mm) to avoid custom rolling premiums (15–20%).

9. Supply Chain & Value-Added Services

Minimum Order Quantity (MOQ): 10 tons (standard grades/thicknesses); 50 tons (Grade G/H or custom thicknesses);
Delivery Lead Time: 20–35 days (stock Grade B); 35–50 days (Grade F); 50–70 days (Grade G/H or custom orders);
Packaging: Seaworthy export packaging (steel bundles + wooden skids + moisture-proof film) to prevent corrosion;
Value-Added Services:

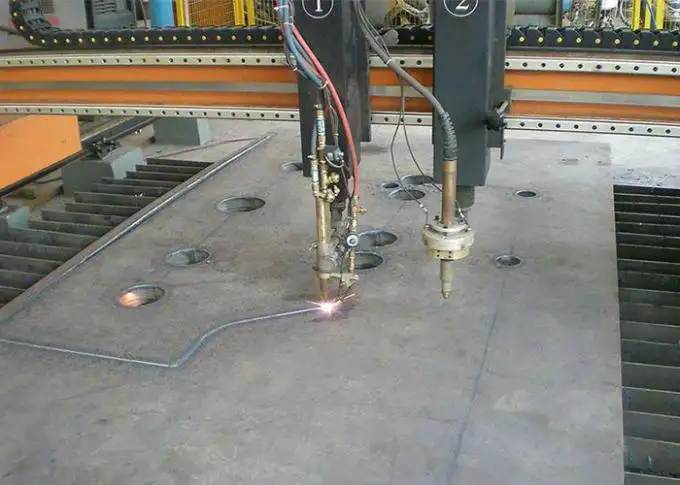

- Precision cutting (plasma, laser, waterjet) to custom dimensions;
- Heat treatment (normalizing, Q&T, stress relieving);
- Welding and fabrication of vessel components;
- ASME U-Stamp certification and third-party testing (SGS/BV/TÜV);
- Technical support (cryogenic design, welding guidelines);
Global Supply Hubs: Core production bases in China (Hebei, Jiangsu), USA (Pennsylvania, Ohio), and Europe (Germany, Poland); loading ports: Shanghai, Tianjin, Houston, Hamburg.

10. Conclusion

ASTM A203/A203M pressure vessel steel stands as the benchmark for nickel-alloyed cryogenic structural steel, offering unparalleled toughness and reliability in low-temperature (-29°C to -150°C) pressure-containing applications. Its eight grade variants, differentiated by nickel content, enable precise tailoring to service temperature requirements—from moderate cryogenic (-29°C) with Grade A to extreme cryogenic (-150°C) with Grade H.

While higher-nickel grades command a premium, their ability to prevent brittle fracture in harsh cryogenic environments justifies the investment for safety-critical applications like LNG storage and petrochemical reactors. Backed by ASTM’s rigorous standards, ASME certification, and strict quality control—including mandatory cryogenic impact testing—A203/A203M remains the preferred choice for engineers and operators seeking to balance performance, safety, and durability in low-temperature pressure vessels.

For ambient-temperature applications, ASTM A516 offers a cost-effective alternative, but for sub-zero service, ASTM A203/A203M’s nickel-enhanced cryogenic toughness remains unmatched—solidifying its status as the gold standard for low-temperature pressure vessel steel globally.
