API 5L Grade B Steel Pipe: A Comprehensive Guide to Carbon Steel Line Pipe—Specifications, Properties, Applications, and Supply Chain

Product Details

1. Core Definition & Standard Compliance

1.1 Fundamental Overview

API 5L Grade B is a non-alloy carbon steel line pipe engineered for seamless or welded construction, optimized for high-pressure fluid transmission and structural integrity in harsh operating environments (e.g., offshore, desert, or cold climates). Key naming and classification details:

Grade Nomenclature (API 5L):
- “API 5L”: Primary standard (American Petroleum Institute Specification 5L) for line pipes used in oil, gas, and water transmission;
- “Grade B”: Baseline carbon steel grade (entry-level high-strength line pipe) with defined minimum yield strength (275 MPa);
- “PSL (Product Specification Level)”: PSL1 (general-purpose, basic quality) and PSL2 (enhanced quality, mandatory impact testing, stricter chemical/mechanical controls).
Key Aliases: API 5L GR. B, API 5L Grade B Line Pipe, Carbon Steel Line Pipe GR. B.
Equivalent Grades:
- ASTM: A252 Grade 2 (piling pipe), A53 Grade B (mechanical/structural pipe);
- EN: EN 10217-1 Grade P235GH, EN 10297-1 Grade E235;
- GB/T: GB/T 9711 Grade B (Chinese equivalent to API 5L GR. B PSL1);
- JIS: JIS G 3454 Grade STPG370.

1.2 Core Standards

Primary Standard: API 5L (45th Edition, 2022) – Specifies requirements for seamless, longitudinal submerged arc welded (LSAW), spiral submerged arc welded (SSAW), and electric resistance welded (ERW) line pipes;
Complementary Standards: API 5CT (threading/coupling), ASTM A6/A6M (dimension tolerances), ISO 3183 (international line pipe standard);
Quality Certifications: ISO 9001, API 5L Monogram Certification, CE (for European markets), and third-party certifications (SGS, BV, TÜV) for material and weld quality;
Critical Requirements:
- PSL1: Minimum yield strength (YS) ≥275 MPa, tensile strength (TS) 415–585 MPa, no mandatory impact testing;
- PSL2: YS ≥275 MPa, TS 415–585 MPa, mandatory impact testing (≥27 J at 0℃ or -20℃), stricter impurity control (P ≤0.025%, S ≤0.015%).

2. Chemical Composition

API 5L Grade B’s carbon steel formulation is optimized for weldability, strength, and toughness—with strict limits on impurities to prevent brittle fracture. Chemical composition (mass fraction, %; per API 5L 45th Edition):

Element	PSL1 Content Range	PSL2 Content Range	Core Function
Carbon (C)	≤0.28%	≤0.26%	Enhances strength; controlled to ensure weldability (low carbon avoids hard, brittle welds)
Manganese (Mn)	0.29–1.06%	0.30–1.06%	Primary strengthener; improves ductility and weld fusion
Phosphorus (P)	≤0.030%	≤0.025%	Strictly limited to prevent cold brittleness and weld defects
Sulfur (S)	≤0.030%	≤0.015%	Minimized to avoid hot cracking during welding and reduce corrosion susceptibility
Silicon (Si)	≤0.10–0.35%	≤0.10–0.35%	Enhances oxidation resistance and weld fluidity
Copper (Cu)	≤0.30%	≤0.30%	Optional trace element; improves atmospheric corrosion resistance
Nickel (Ni)	≤0.30%	≤0.30%	Trace element; enhances low-temperature toughness (PSL2)
Iron (Fe)	Remainder	Remainder	Base metal; provides structural integrity and pressure resistance

Key Alloy Advantage

The balanced carbon-manganese composition ensures API 5L GR. B offers an ideal trade-off between strength, weldability, and cost. Unlike higher-grade API 5L steels (e.g., X42, X52), GR. B requires no alloy additions (e.g., chromium, vanadium) to meet performance requirements, making it the most cost-effective choice for medium-pressure applications.

3. Mechanical & Physical Properties

API 5L Grade B’s mechanical performance is tailored for line pipe service, with distinct PSL1/PSL2 differences in toughness. Typical values for seamless and welded pipes (API 5L 45th Edition compliant):

Performance Indicator	PSL1 (Typical)	PSL2 (Typical)	Key Implication for Applications
Yield Strength (Rp0.2, ≥MPa)	275	275	Meets medium-pressure requirements (up to 10 MPa working pressure)
Tensile Strength (Rm, MPa)	415–585	415–585	Balances strength and ductility for pipe installation (bending, joining)
Elongation (A50mm, ≥%)	22	22	Adequate ductility to withstand construction stresses and thermal expansion
Impact Toughness (CVN, J)	Not Mandatory	≥27 (-20℃)	PSL2 suited for cold-climate or offshore applications
Hardness (HB)	110–160	110–160	Prevents wear during handling and installation
Burst Pressure (MPa, 10mm wall)	42–55	42–55	Resists catastrophic failure under overpressure

3.1 Physical Properties

Density: 7.85 g/cm³ (standard carbon steel density);
Melting Point: 1450–1510℃;
Thermal Conductivity: 50 W/m·K (room temperature);
Thermal Expansion Coefficient: 11.7×10⁻⁶/℃ (20–100℃);
Corrosion Resistance: Moderate—resists atmospheric corrosion; requires protective coatings (e.g., 3PE, FBE) for harsh environments (saltwater, acidic soil);
Weldability: Excellent—compatible with SMAW, GMAW, GTAW, and SAW welding processes; no pre-heat required for thin walls (<12mm).

4. Product Forms & Dimensional Range

API 5L Grade B is supplied in diverse configurations to meet oil, gas, and industrial pipeline needs:

4.1 Core Product Types

Seamless Pipe (SMLS): Manufactured via piercing and rolling (no welds); ideal for high-pressure, critical applications (offshore, deep wells);
Longitudinal Submerged Arc Welded (LSAW) Pipe: Straight seam welded; high structural integrity for large-diameter, long-distance pipelines;
Spiral Submerged Arc Welded (SSAW) Pipe: Spiral seam welded; cost-effective for large-diameter, low-to-medium pressure lines;
Electric Resistance Welded (ERW) Pipe: High-frequency welded; suitable for medium-diameter, onshore pipelines.

4.2 Dimensional Range

Outer Diameter (OD): 10.3mm (0.405″) – 1620mm (63″); common sizes: 114.3mm (4.5″), 219.1mm (8.625″), 323.9mm (12.75″), 508mm (20″);
Wall Thickness (WT): 1.7mm – 60mm; specified via SCH (Schedule) 10, 20, 30, 40, 80, XS, XXS or nominal wall thickness (NWT);
Length: Standard 6m, 12m, 18m; custom lengths up to 24m (LSAW/SSAW);
Dimensional Tolerance: OD ±0.5% (seamless) to ±1.0% (welded); WT ±10% (standard); length ±50mm.

4.3 Surface & End Treatments

Surface Finishes:
- Mill Finish: As-rolled or as-welded surface (for indoor storage or immediate coating);
- Shot Blasted: Cleaned to Sa 2.5 standard (preparation for anti-corrosion coatings);
Anti-Corrosion Coatings:
- Fusion Bonded Epoxy (FBE): 300–500μm thickness; corrosion resistance for buried pipelines;
- 3-Layer Polyethylene (3PE): PE + adhesive + FBE; superior resistance to soil, water, and chemicals;
- Zinc Coating: Hot-dip galvanizing for atmospheric or marine applications;
End Treatments:
- Plain Ends (PE): For welding;
- Beveled Ends (BE): For butt welding (API 5L standard);
- Threaded Ends (TE): NPT, BSPT threads with couplings (API 5CT compliant) for quick assembly.

5. Production Process & Quality Control

API 5L Grade B requires precision manufacturing to ensure pressure integrity and weld quality:

Raw Material Preparation: Low-carbon steel billets (for seamless) or coils/plates (for welded) with certified chemical composition;
Forming & Fabrication:
- Seamless Pipe: Billets heated to 1200–1250℃ → pierced into hollow shells → cold/hot rolled to target OD/WT → heat treated (normalizing);
- LSAW Pipe: Steel plates cut to width → bent into cylindrical shape → submerged arc welded (double-sided) → heat treated;
- SSAW Pipe: Steel coils uncoiled → formed into spiral shape → submerged arc welded → flattening and straightening;
Heat Treatment: Normalizing (900–950℃) to refine grain structure, improve toughness, and reduce residual stress;
Surface Preparation: Shot blasting, pickling, or grinding to remove oxide scale and contaminants;
Coating (Optional): Application of FBE/3PE/zinc coating per customer requirements;
Quality Inspection (API 5L Mandatory):
- Chemical Testing: Spectrometric analysis (ASTM E1086) to verify composition;
- Mechanical Testing: Tensile, bend, and hardness tests for each production batch; impact testing (mandatory for PSL2);
- Non-Destructive Testing (NDT):
  - Ultrasonic Testing (UT): 100% wall thickness inspection and weld flaw detection;
  - Radiographic Testing (RT): Weld inspection (100% for PSL2, random for PSL1);
  - Magnetic Particle Testing (MT)/Liquid Penetrant Testing (PT): Surface flaw detection on welds and ends;
- Pressure Testing: Hydrostatic testing (1.5× design pressure) to ensure leak tightness;

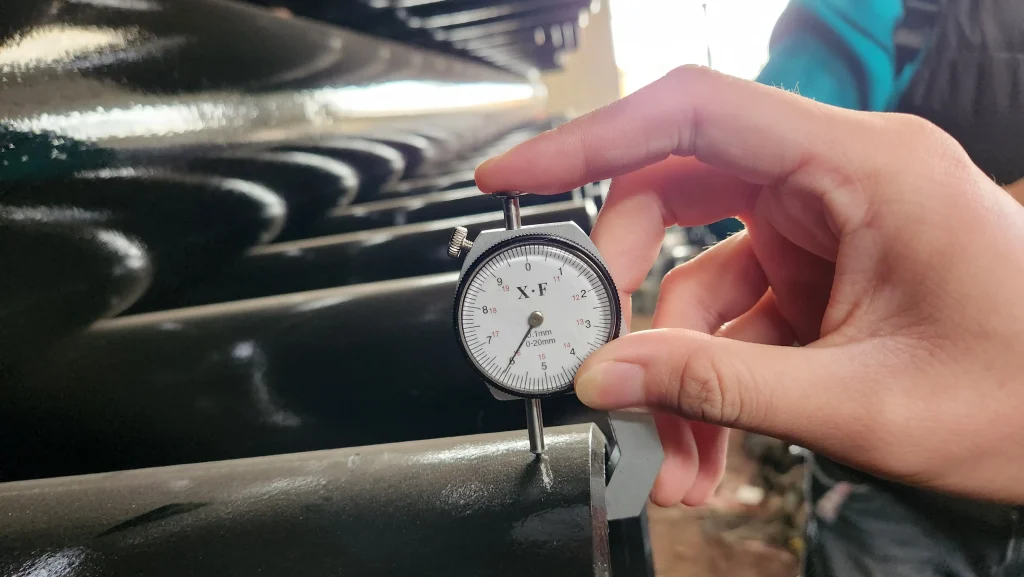

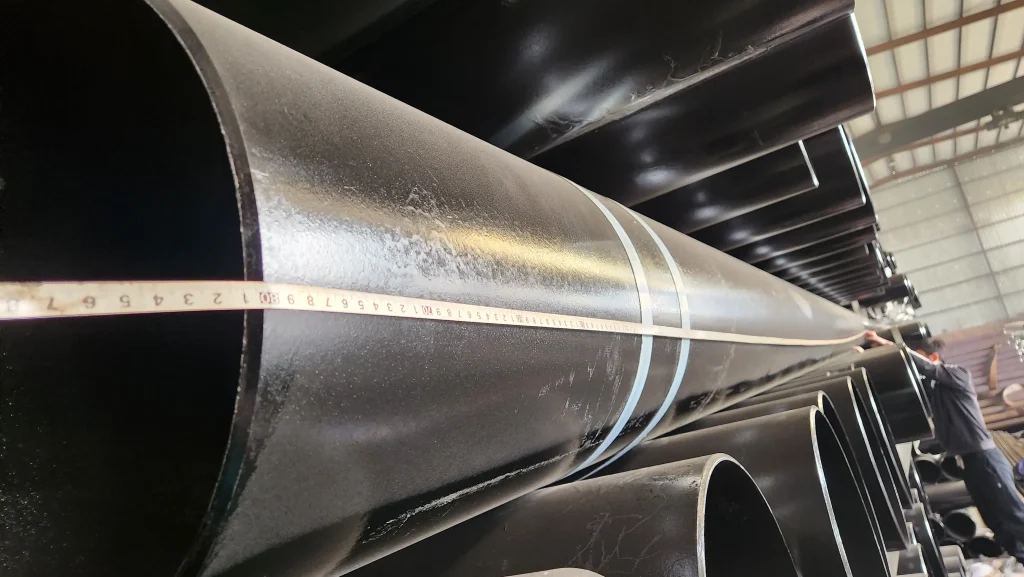

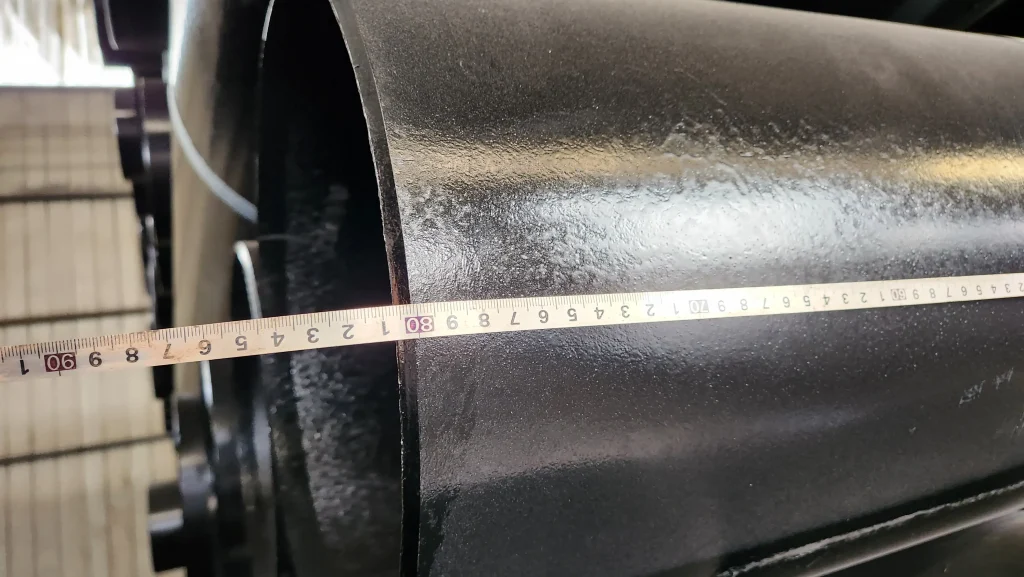

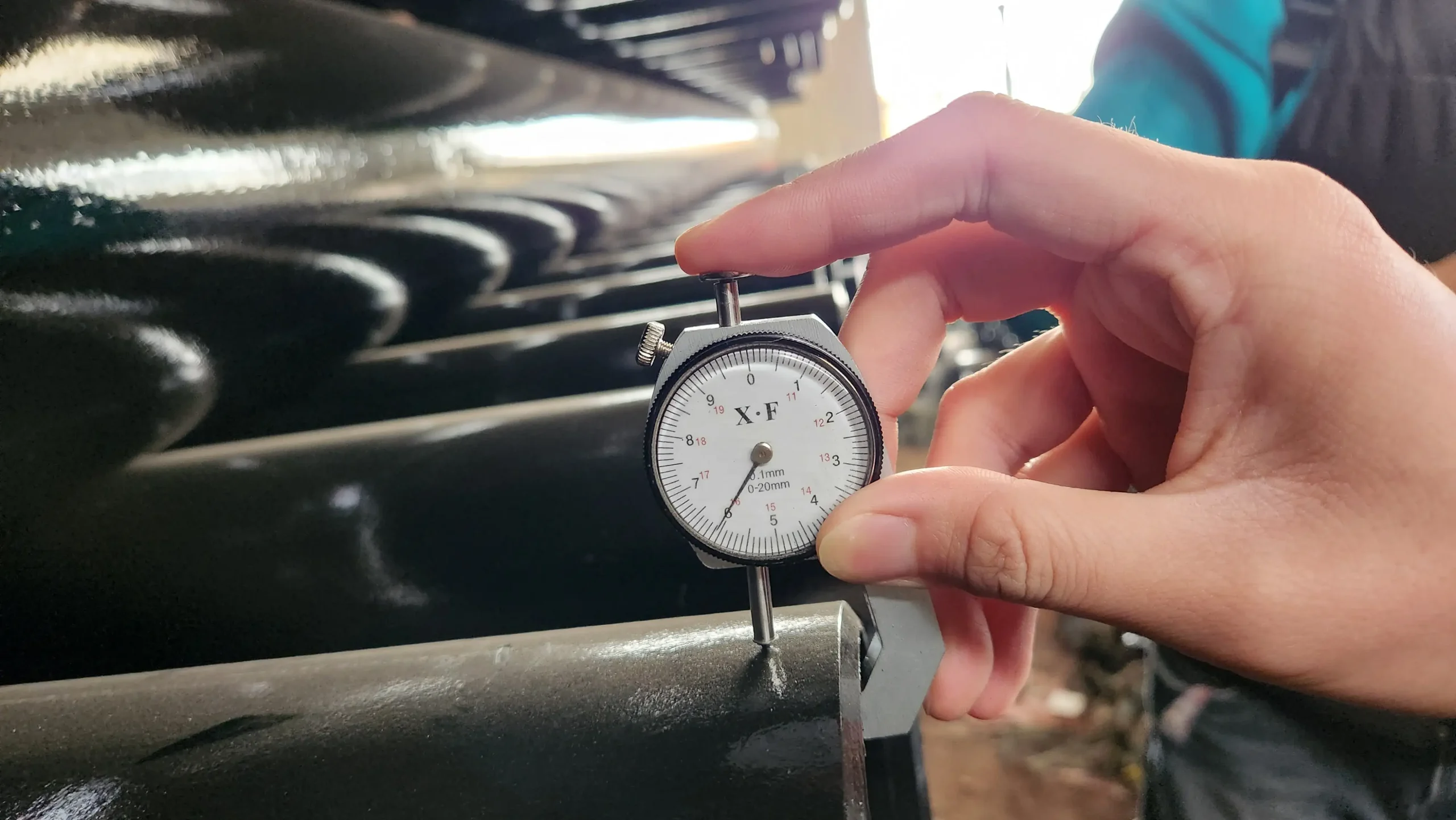

- Dimensional Inspection: Laser measurement for OD, WT, straightness, and end finish.

6. Core Applications

API 5L Grade B’s balance of weldability, cost, and pressure resistance makes it indispensable for energy and industrial infrastructure:

6.1 Oil & Gas Industry

Onshore/offshore oil/gas transmission pipelines (medium-pressure, ≤10 MPa);
Gathering and distribution lines (wellheads to refineries);
Water injection lines for enhanced oil recovery (EOR);
Rationale: Weldability enables long-distance pipeline construction; cost-effective for non-extreme pressure conditions.

6.2 Petrochemical & Chemical Industry

Chemical fluid transmission (e.g., methanol, ethylene, wastewater);
Refinery process pipelines and storage tank connections;
Rationale: Resists corrosion from neutral/weakly corrosive fluids; compatible with chemical processing temperatures (-20℃ to 200℃).

6.3 Water & Infrastructure

Municipal water supply and wastewater pipelines;
Irrigation systems and agricultural water transmission;
Rationale: Cost-effective for large-scale projects; easy to install and maintain.

6.4 Industrial & Power Generation

Boiler feedwater pipes and cooling water lines;
Industrial compressed air and steam pipelines;
Rationale: Withstands moderate pressure and temperature; reliable structural performance.

7. Comparison with Similar Grades

Grade	Key Advantage vs. API 5L GR. B	Key Disadvantage vs. API 5L GR. B	Typical Application
API 5L X42	Higher yield strength (420 MPa)	Higher cost (~15–20% more)	High-pressure oil/gas transmission
ASTM A53 GR. B	Lower cost; suited for mechanical use	Not API-certified for critical pipelines	Structural tubing, low-pressure lines
API 5L GR. B PSL2	Enhanced toughness; cold-climate use	Higher cost (~10–15% vs. PSL1)	Offshore, arctic pipelines
Stainless Steel 304	Superior corrosion resistance	3–4x higher cost; lower pressure rating	Corrosive chemical pipelines

8. Cost & Pricing Considerations (2025 Q4 Data)

API 5L Grade B’s pricing varies by pipe type, size, PSL level, and order volume:

Market Segment	Price Range (USD/ton)	Price Range (CNY/ton)	Notes
Chinese Domestic (Ex-Works)	750–950	5100–6450	PSL1, SSAW pipe (219mm OD × 8mm WT)
Chinese Export (FOB)	850–1100	5780–7480	Bulk orders (≥500 tons)
US Market (Delivered)	1100–1400	7480–9520	Includes import duties + logistics
European Market (Delivered)	1200–1500	8160–10200	Includes CE/API certification

8.1 Key Pricing Drivers

Pipe Type: Seamless pipe costs 30–50% more than SSAW/LSAW; ERW costs 15–25% more than SSAW;
PSL Level: PSL2 costs 10–15% more than PSL1 (due to mandatory impact testing and stricter NDT);
Size & Wall Thickness: Large OD (>500mm) or thick WT (>20mm) adds 20–30% to base cost;
Coating: FBE coating adds 10–15%; 3PE coating adds 20–25%;
Order Volume: Bulk orders (≥500 tons) unlock 10–15% discounts vs. small orders (<100 tons).

8.2 Cost Optimization Strategies

Choose Pipe Type Wisely: Use SSAW for large-diameter, low-pressure lines (lowest cost); seamless for critical high-pressure applications;
PSL Right-Sizing: Use PSL1 for onshore, temperate-climate projects (saves 10–15% vs. PSL2);
Bulk Purchasing: Partner with manufacturers for project-wide orders to reduce unit costs;
Domestic Sourcing: Chinese-manufactured API 5L GR. B offers 25–35% cost savings vs. Western suppliers with comparable API certification.

9. Supply Chain & Value-Added Services

Minimum Order Quantity (MOQ): 10 tons (standard sizes); 50 tons (custom sizes/coating); 500 tons (SSAW/LSAW bulk orders);
Delivery Lead Time: 15–30 days (stock PSL1); 30–45 days (PSL2); 45–60 days (custom coating/size);
Packaging: Seaworthy export packaging (steel bundles + wooden skids) for pipes; threaded pipes with plastic caps to protect threads;
Value-Added Services:
- Custom cutting and beveling;
- Anti-corrosion coating (FBE, 3PE, zinc);
- Threading and coupling assembly (API 5CT compliant);
- Third-party testing and API 5L monogram certification;
- Technical support (pressure rating calculation, installation guidelines);
Global Supply Hubs: Core production bases in China (Hebei, Jiangsu), USA (Texas, Louisiana), and Europe (Germany, Poland); loading ports: Shanghai, Tianjin, Houston, Hamburg.

10. Conclusion

API 5L Grade B steel pipe stands as the benchmark for cost-effective, reliable line pipe in medium-pressure fluid transmission applications. Its balanced chemical composition, exceptional weldability, and compliance with API 5L’s rigorous standards make it the preferred choice for oil, gas, petrochemical, and infrastructure projects worldwide. Whether as seamless, LSAW, SSAW, or ERW pipe, it delivers consistent performance while keeping project costs in check—outperforming higher-cost alloys for non-extreme pressure requirements.

PSL1 offers a cost-efficient solution for general-purpose applications, while PSL2 caters to critical environments (cold climates, offshore) with enhanced toughness and quality controls. Backed by global API certification, strict quality inspection, and a mature supply chain, API 5L Grade B remains the workhorse of the line pipe industry—trusted by engineers, contractors, and energy companies for its uncompromised reliability and value. For high-pressure applications, upgrading to API 5L X42 or X52 is recommended, but for medium-pressure, cost-sensitive projects, API 5L Grade B remains unmatched.
